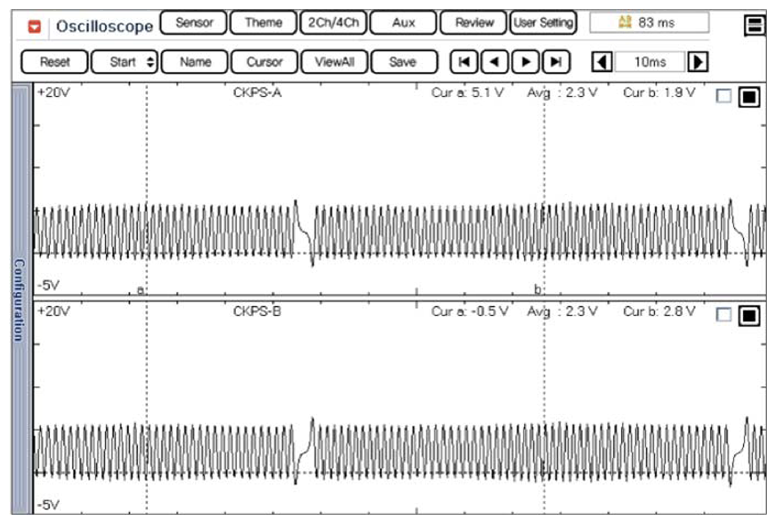

Fig 1: Display - Crankshaft Position Sensor Waveform At Idle
Courtesy of HYUNDAI MOTOR AMERICA
This example shows a typical Crankshaft Position Sensor (CkPS) waveform at idle. The ECM controls the injection and ignition timing by using these signals.
