Component Inspection

  1. IG "OFF" and install a GDS.
  2. Connect probe to APS1 and APS2 to check signal waveform by using oscilloscope function.
  3. Measure signal waveform of APS by pressing and depressing accelerator pedal.

    Specification:  Signal waveform will be displayed as follows.

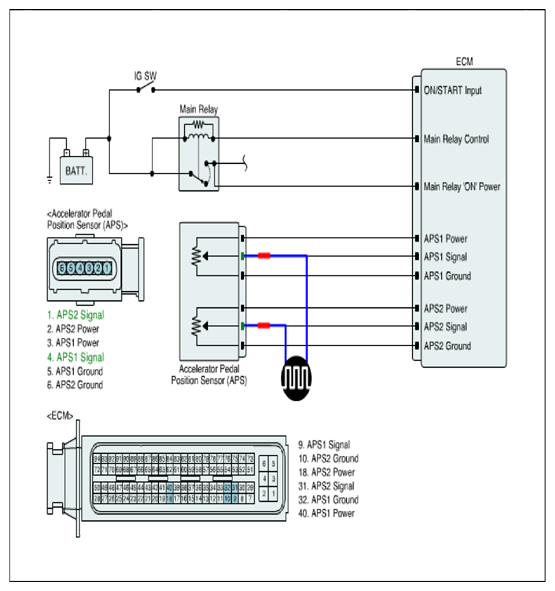

    Fig 1: Checking APS Signal Waveform
    G08814033Courtesy of HYUNDAI MOTOR AMERICA
  4. Is the measured signal waveform O.K?

    YES

    Substitute with a known - good ECM and check for proper operation. If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    Substitute with a known-good APS and check for proper operation. If the problem is corrected, replace APS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
