A/C Control Module (Manual) Connector End View (M21-B)

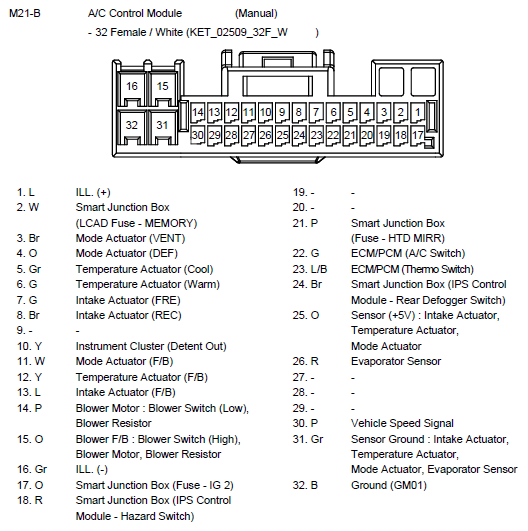

Fig 1: A/C Control Module (Manual) Connector End View (M21-B)
Courtesy of HYUNDAI MOTOR AMERICA
