Repair Procedures: Replacement
WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the heater & blower unit.
(Refer to "HEATER UNIT ")

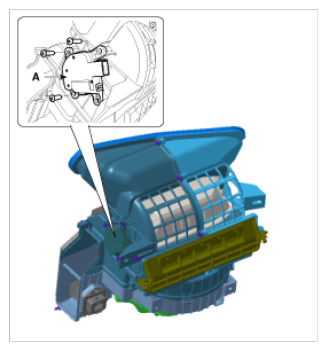

- Loosen the mounting screws and then remove the intake actuator (A).
- Installation is the reverse order of removal.
