Monitor GDS Data

WARNING: This page is about a different car, the 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Connect GDS.
IG "ON" and engine "OFF".
Select "DTC Analysis" mode.
After erase DTC, keep the vehicle condition within "the enable conditions" (Refer to "DTC DETECTING CONDITION " table).

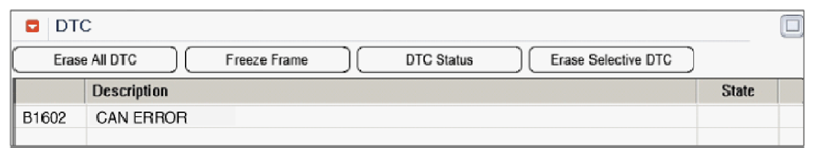

Fig 1: Display - CAN Error Screen
Courtesy of HYUNDAI MOTOR AMERICA
Is the same DTC occurred again?
YES
- Go to next procedure.
NO
- Fault is intermittent caused by poor contact in the CLU's connector or was repaired and CLU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
