Components and Components Location: Components

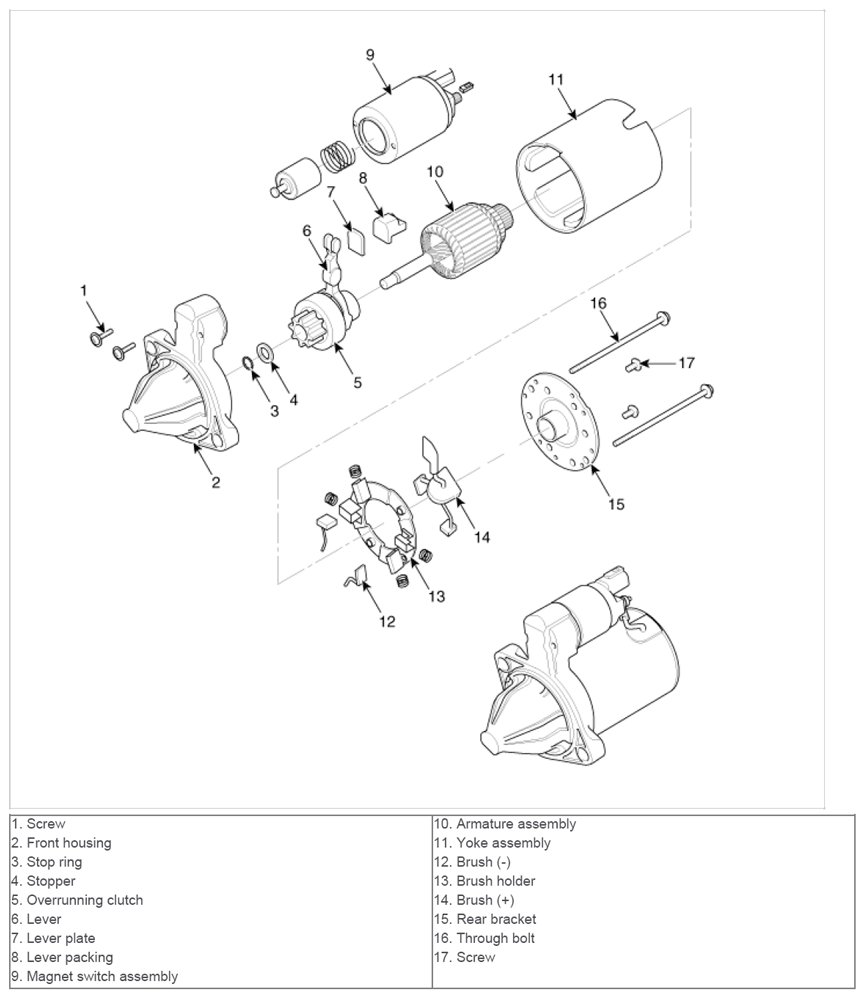

Fig 1: Starting System Components
G09150316Courtesy of HYUNDAI MOTOR AMERICA
