Circuit Diagram: (A/T)

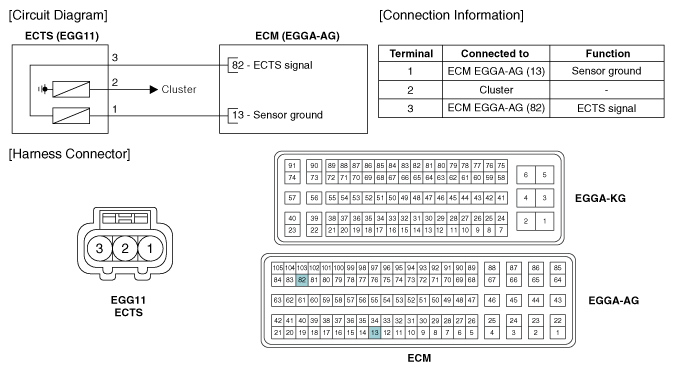

Fig 1: Engine Coolant Temperature Sensor Circuit Diagram And Connector Terminal Identification
G10362419Courtesy of HYUNDAI MOTOR AMERICA
