Front Washer Control

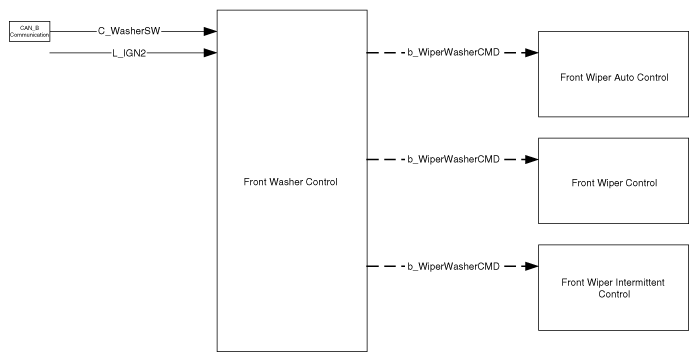

Fig 1: Front Washer Control Communication Diagram
G10368880Courtesy of HYUNDAI MOTOR AMERICA
Function Characteristics Name
Signal Label Spec. Designation
Input Logic L_IGN2 Ignition 2 Signal
CAN_B Communication C_WasherSW Wiper Washer Switch from MFSW
Output Internal b_WiperWasherCMD Front Wiper Washer Control Command
