Component Inspection

■ Check TPS resistance

1. IG "OFF" and disconnect ETC Motor & TPS connector.
2. Measure resistance between TPS power and TPS ground terminals of ETC Motor & TPS connector. (component side)

   Specification:  1.6 ~ 2.4 kΩ

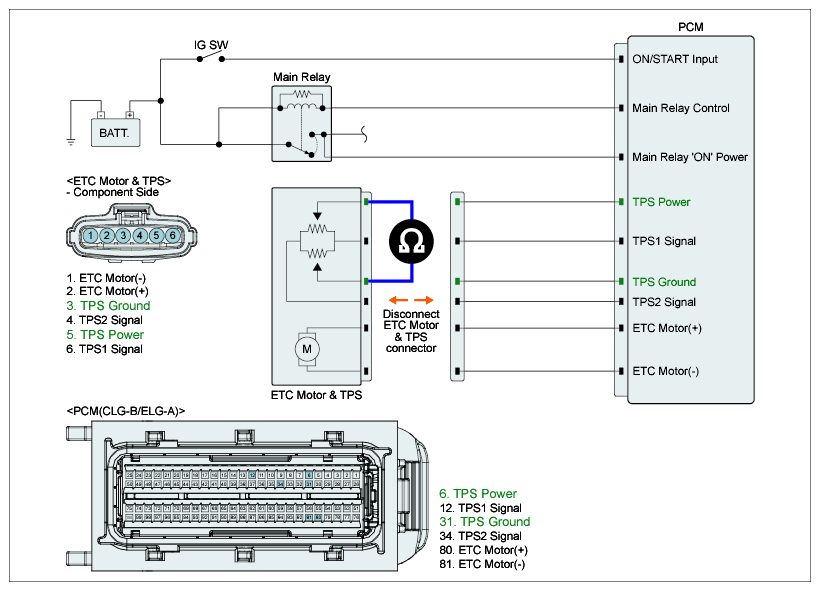

   Fig 1: Measuring Resistance Between TPS Power And TPS Ground Terminals Of ETC Motor & TPS Connector

   Courtesy of HYUNDAI MOTOR AMERICA

   NO

   • Substitute with a known - good ECT motor & TPS and check for proper operation. If the problem is corrected, replace ECT motor & TPS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
3. Is the measured resistance within specification?

   YES

   • Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known - good ECT motor & TPS and check for proper operation. If the problem is corrected, replace ECT motor & TPS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   * Procedure of ETS Initialization

   1. Erase the trouble codes on PCM
   2. Turn the ignition key "OFF" until the main relay turns "OFF". (It will take about 10 sec.)
   3. Turn ignition key "ON" for more than 1 second to record the throttle motor position in the EEPROM
