DTC P0685: ECM/PCM Power Relay Control Circuit / Open
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

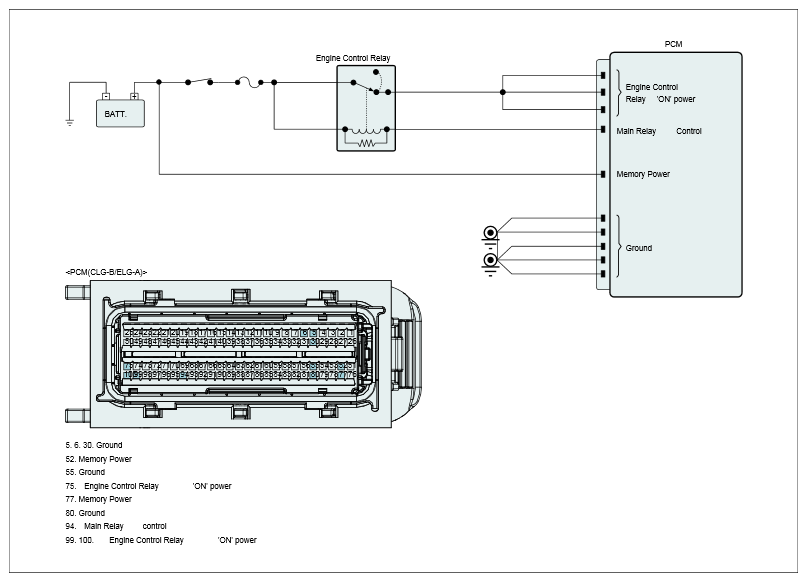

Diagnostic Circuit Diagram
Fig 1: PCM - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
