Engine Control System Diagnosis (3 Of 3)
>>
DTC P2122: Accelerator Position Sensor 1 Signal Circuit Low Input
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

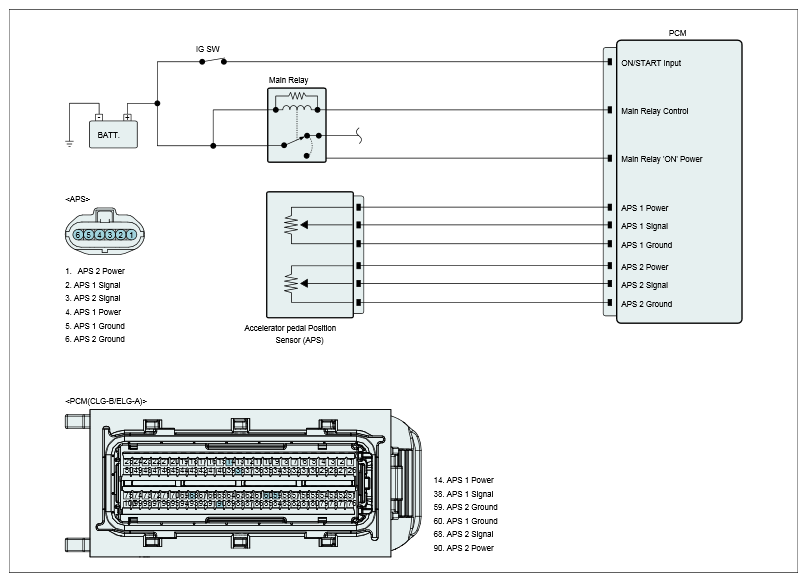

Fig 1: Accelerator Position Sensor - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
