Fuel Pump Control Module Connector End View (F97)

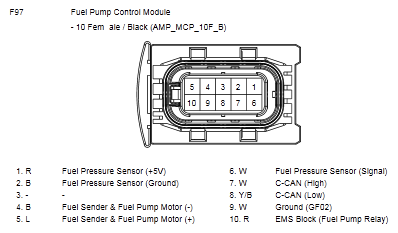

Fig 1: Fuel Pump Control Module Connector End View (F97)
G10776362Courtesy of HYUNDAI MOTOR AMERICA
