ATM Solenoid Control

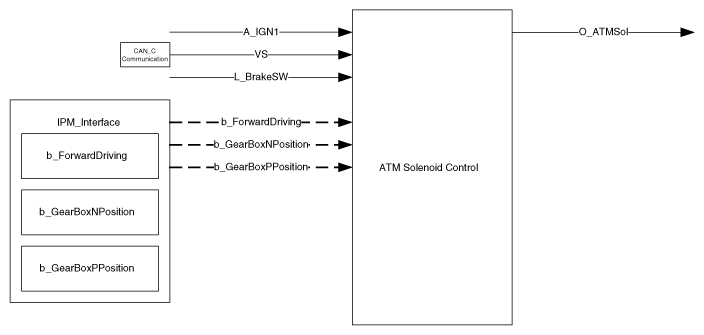

Fig 1: ATM Solenoid Control Communication Diagram

Courtesy of HYUNDAI MOTOR AMERICA

Function	Characteristics	Name
Function	Characteristics	Signal Label	Spec. Designation
Input	Logic	L_BrakeSW	Brake Switch
	Analog	A_IGN1	Ignition 1 Signal
	CAN_C Communication	VS	Vehicle Speed Signal
	Internal	b_ForwardDriving	Shift Lever Position during Forward Driving
		b_GearBoxNPosition	Gear Shift Lever N Position Input
		b_GearBoxPPosition	Gear Shift Lever P Position Input
Output	Logic	O_ATMSol	ATM Solenoid Output
