Front Wiper Low Speed Control

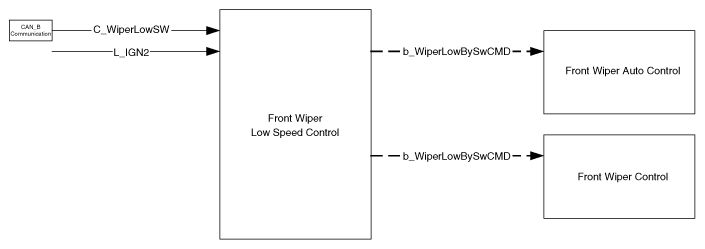

Fig 1: Front Wiper Low Speed Control Communication Diagram
G10368877Courtesy of HYUNDAI MOTOR AMERICA
Function Characteristics Name
Signal Label Spec. Designation
Input Logic L_IGN2 Ignition 2 Signal
CAN_B Communication C_WiperLowSW Wiper Low Switch from MFSW
Output Internal b_WiperLowBySwCMD Wiper Low Speed Output command by Switch
