Components And Components Location: Components

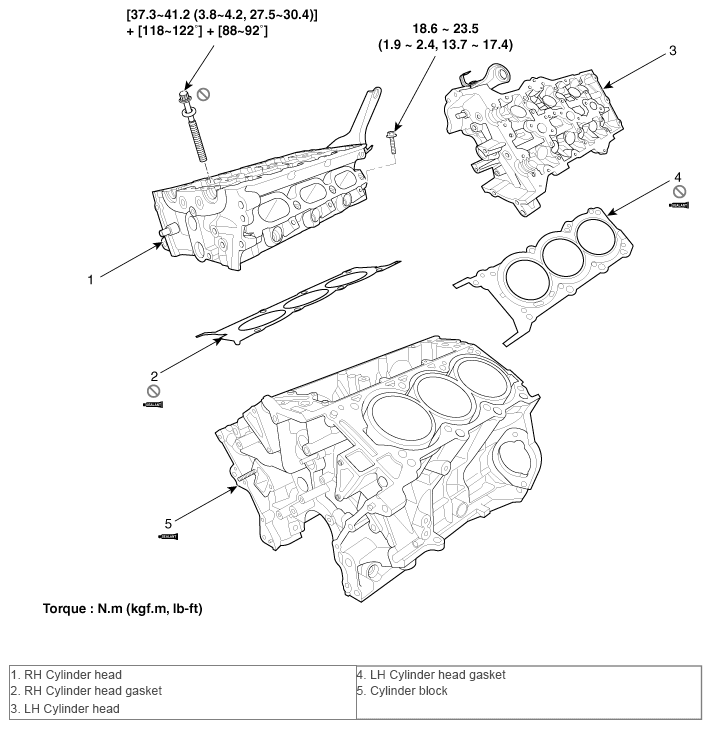

Fig 1: Cylinder Head Components With Torque Specification (1 Of 2)
G10366972Courtesy of HYUNDAI MOTOR AMERICA

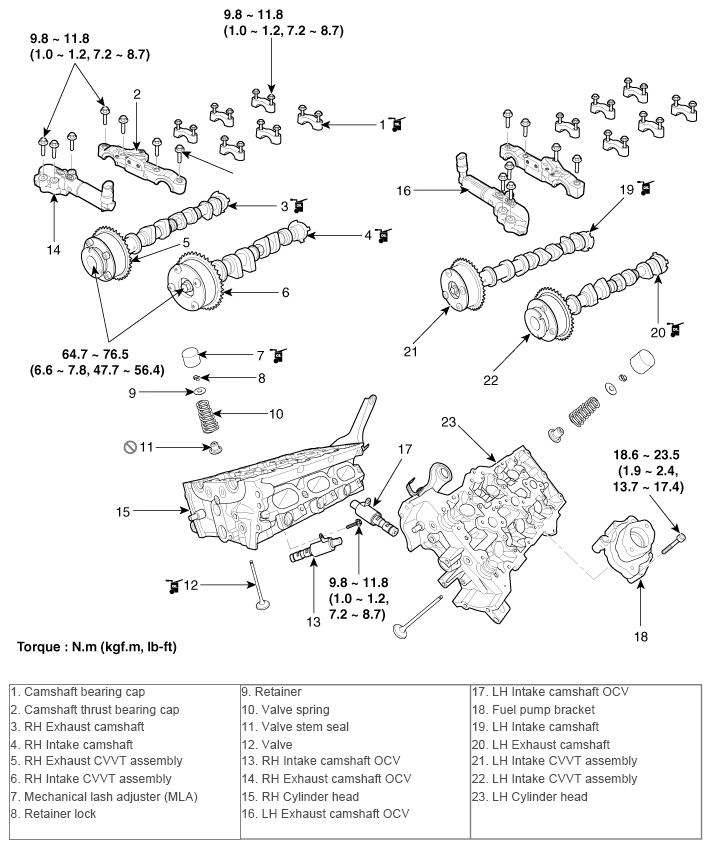

Fig 2: Cylinder Head Components With Torque Specification (2 Of 2)
G10366973Courtesy of HYUNDAI MOTOR AMERICA
