Signal Circuit Inspection

■ Check short to ground in harness

1. IG "OFF" and disconnect ETC Motor & TPS connector and PCM connector.
2. Measure resistance between TPS1 signal terminal of ETC Motor & TPS harness connector and chassis ground. (Measurement "A")
3. Measure resistance between TPS1 signal and TPS ground terminals of ETC Motor & TPS harness connector. (Measurement "B")

   Specification:  Infinite

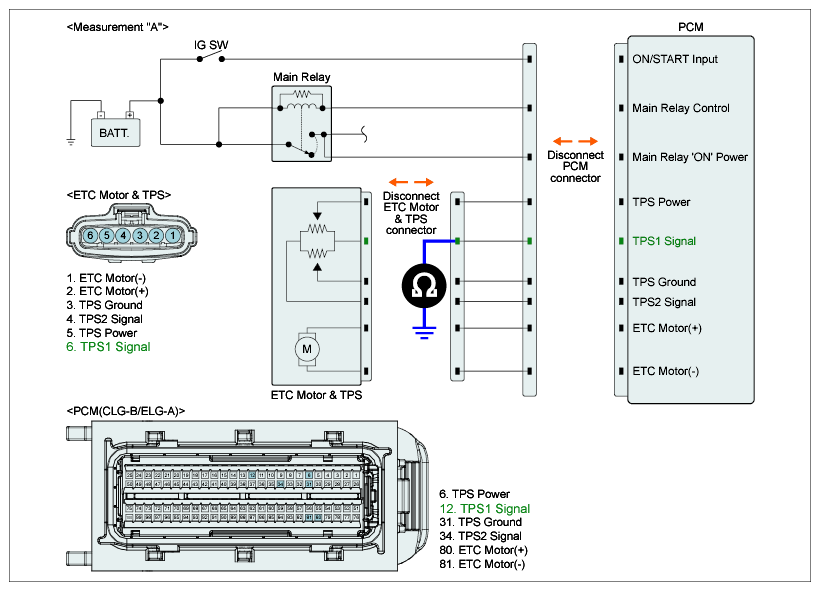

   Fig 1: Measuring Resistance Between TPS1 Signal Terminal Of ETC Motor & TPS Harness Connector And Chassis Ground (Measurement A)

   Courtesy of HYUNDAI MOTOR AMERICA

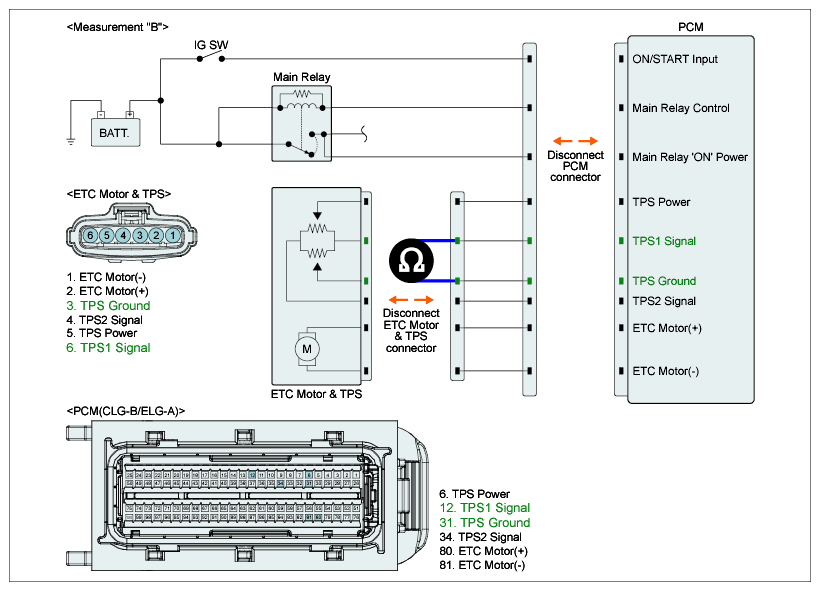

   Fig 2: Measuring Resistance Between TPS1 Signal And TPS Ground Terminals Of ETC Motor & TPS Harness Connector (Measurement B)

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured resistance within specification?

   YES

   • Go to "COMPONENT INSPECTION " procedure.

   NO

   • Repair short to ground in harness and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
