Repair Procedures: Inspection

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from the steering column.
    Fig 1: Identifying Ignition Switch Connector Terminals And Key Warning Switch Connector Terminals
    G10545986Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

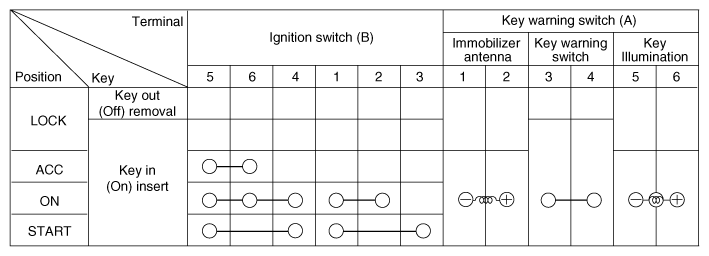

    Fig 2: Ignition Switch & Key Warning Switch Terminals Continuity Chart
    G10545987Courtesy of HYUNDAI MOTOR AMERICA
