Components Location

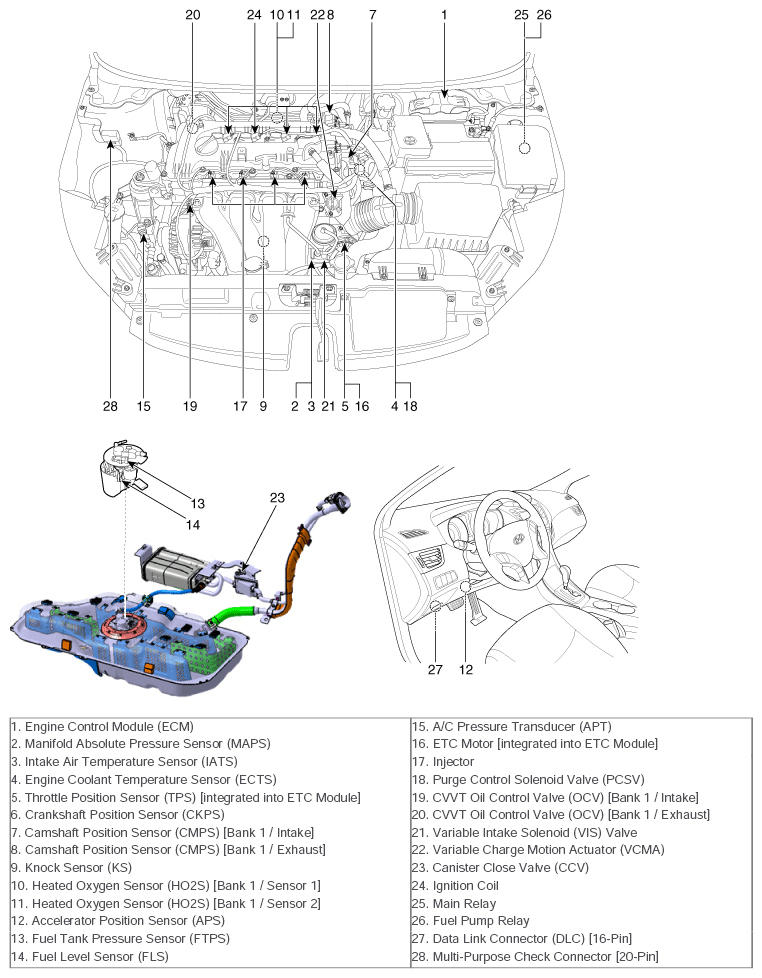

Fig 1: Engine Control System Components Location (1 Of 4)
G10548860Courtesy of HYUNDAI MOTOR AMERICA

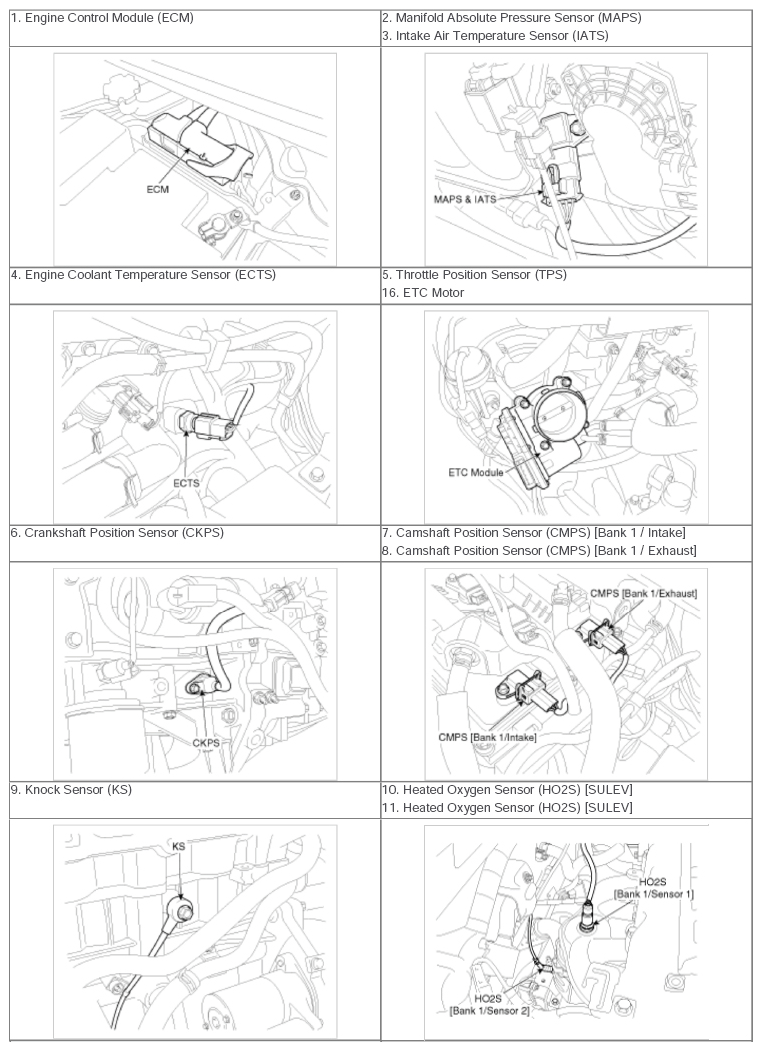

Fig 2: Engine Control System Components Location (2 Of 4)
G10548861Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: Engine Control System Components Location (3 Of 4)
G10548862Courtesy of HYUNDAI MOTOR AMERICA

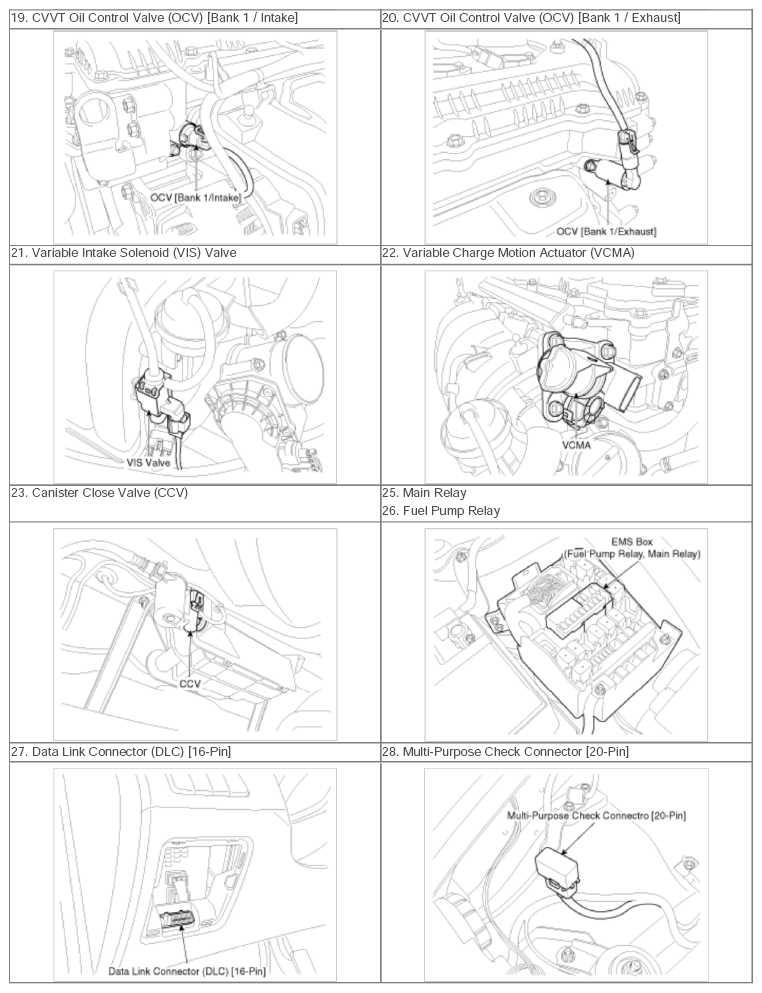

Fig 4: Engine Control System Components Location (4 Of 4)
G10548863Courtesy of HYUNDAI MOTOR AMERICA
