Circuit Diagram: (M/T)

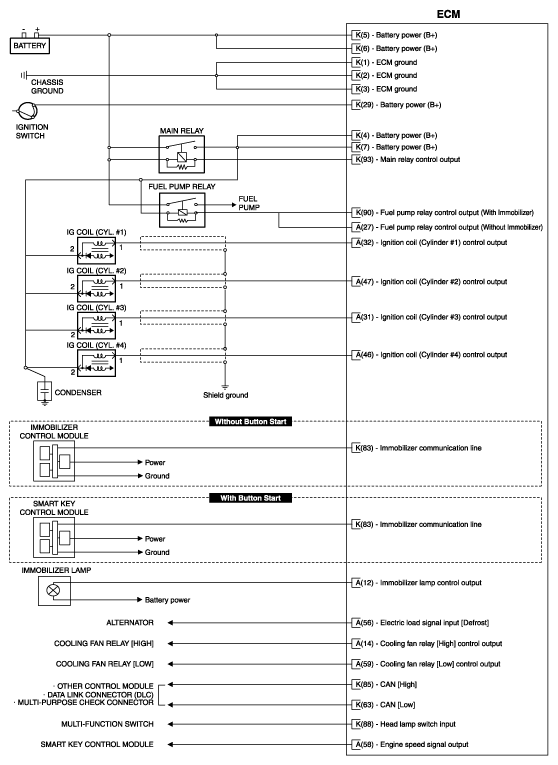

Fig 1: ECM (M/T) Circuit Diagram (1 Of 4)
G10544270Courtesy of HYUNDAI MOTOR AMERICA

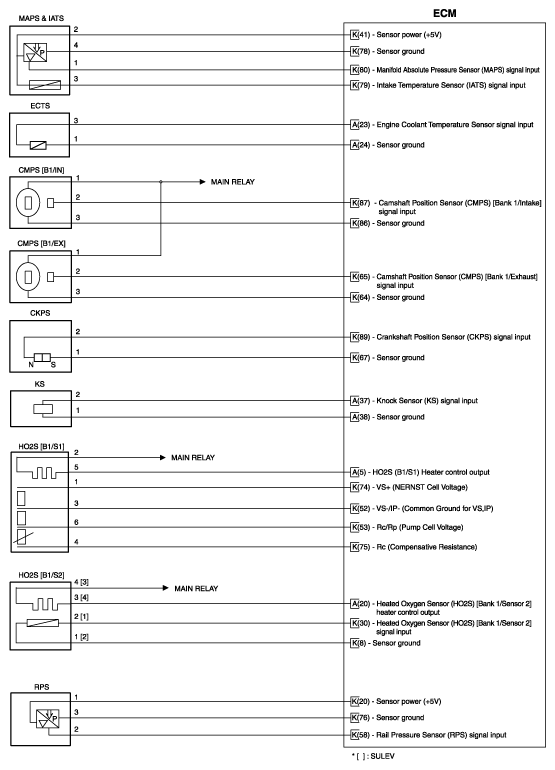

Fig 2: ECM (M/T) Circuit Diagram (2 Of 4)
G10544271Courtesy of HYUNDAI MOTOR AMERICA

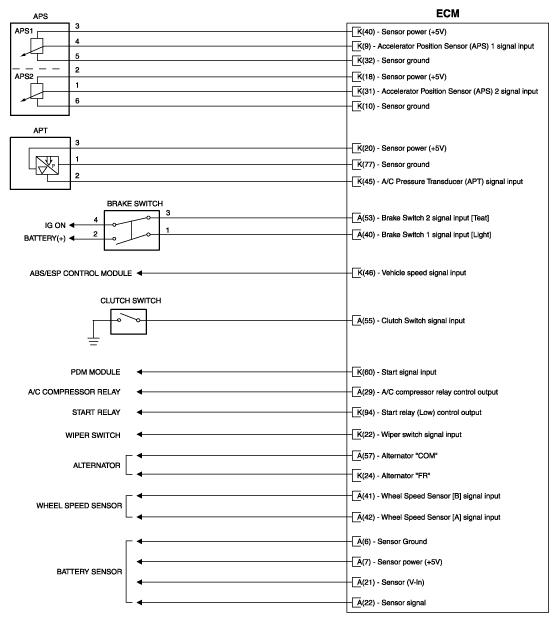

Fig 3: ECM (M/T) Circuit Diagram (3 Of 4)
G10544272Courtesy of HYUNDAI MOTOR AMERICA

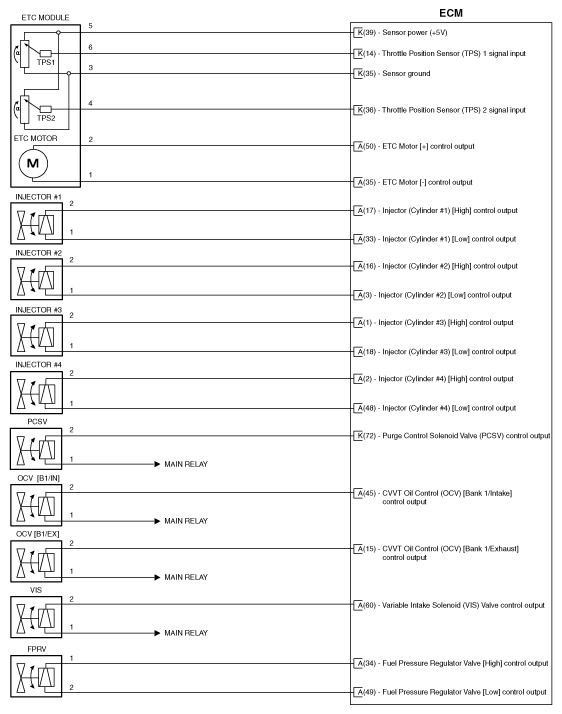

Fig 4: ECM (M/T) Circuit Diagram (4 Of 4)
G10544273Courtesy of HYUNDAI MOTOR AMERICA
