BSD Variant Code Reading

Select the "BSD Variant Code Reading" procedure.

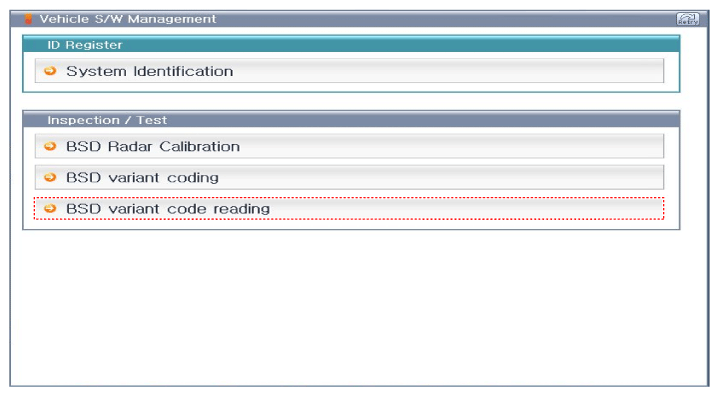

Fig 1: Display - BSD Variant Code Reading Screen

G10387688

Courtesy of HYUNDAI MOTOR AMERICA

Proceed the "BSD Variant Code Reading " procedure according to the GDS screen message.

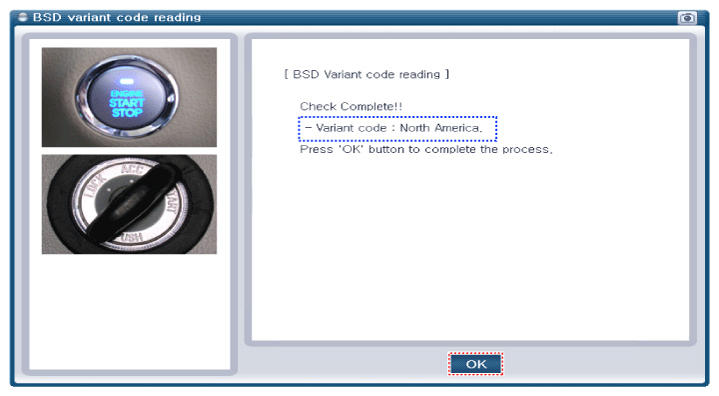

Fig 2: Display - BSD Variant Code Reading Screen (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Display - BSD Variant Code Reading Screen (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

IMPORTANT:

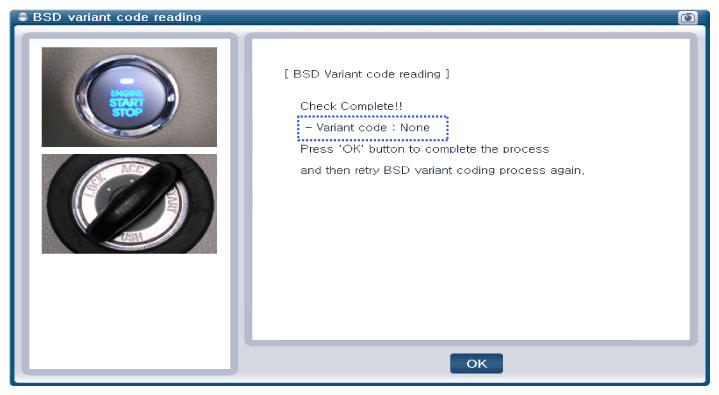

If BSD unit does not set "BSD Variant Coding", "Variant code: None" is verified.

Perform the "BSD Variant Coding " certainly.

Fig 4: Display - BSD Variant Code Reading Screen
Courtesy of HYUNDAI MOTOR AMERICA
