Circuit Diagram (Power Seat Control Switch)

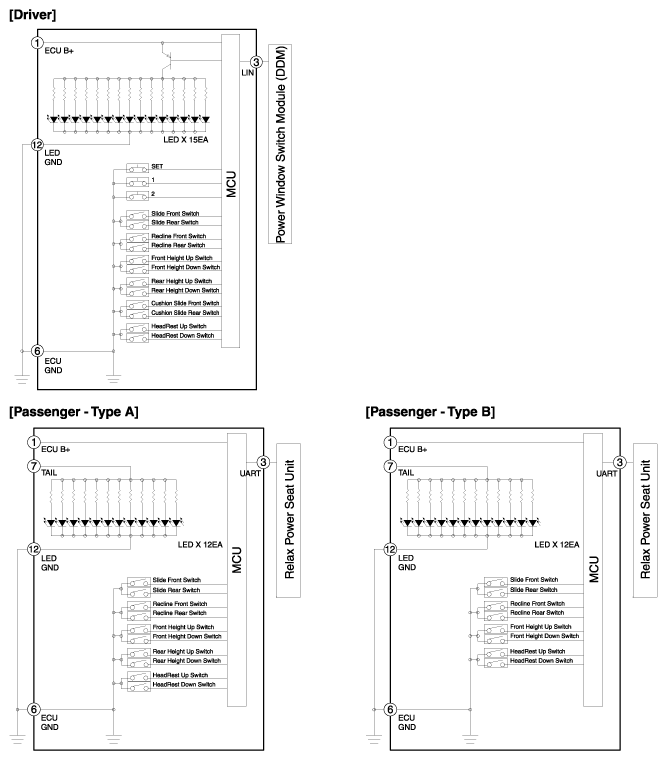

Fig 1: Power Seat Control Switch Circuit Diagram (1 Of 3)
G10387073Courtesy of HYUNDAI MOTOR AMERICA

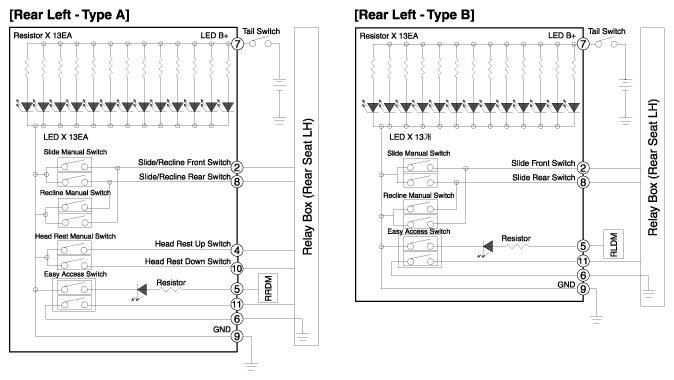

Fig 2: Power Seat Control Switch Circuit Diagram (2 Of 3)
G10387074Courtesy of HYUNDAI MOTOR AMERICA

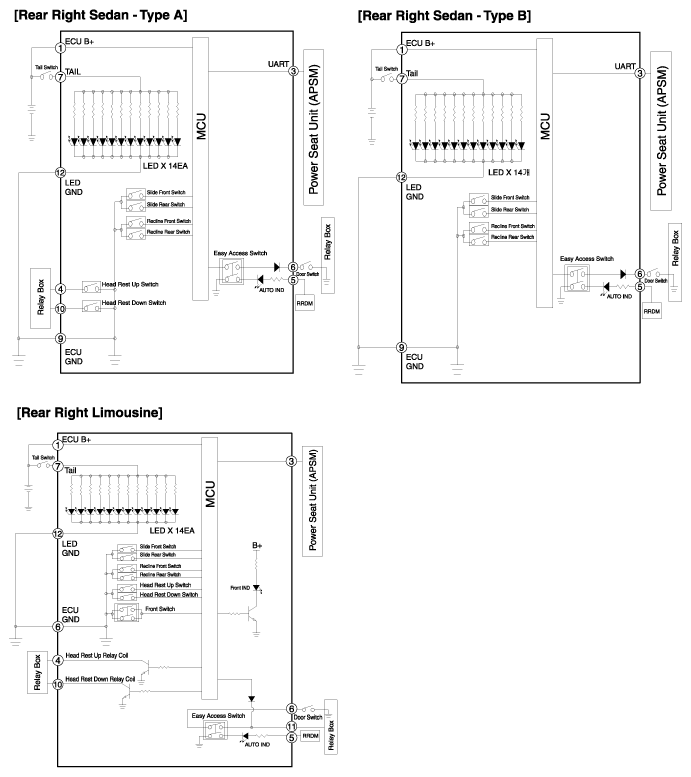

Fig 3: Power Seat Control Switch Circuit Diagram (3 Of 3)
G10387075Courtesy of HYUNDAI MOTOR AMERICA
