Variant Coding Procedure

■ On-line type on GDS

1. Turn the ignition switch OFF.
2. Connect the GDS.
3. Turn the ignition switch ON without the engine running.
4. Select vehicle name and airbag system.
5. Select variant coding mode.
6. Follow the steps on the screen below.

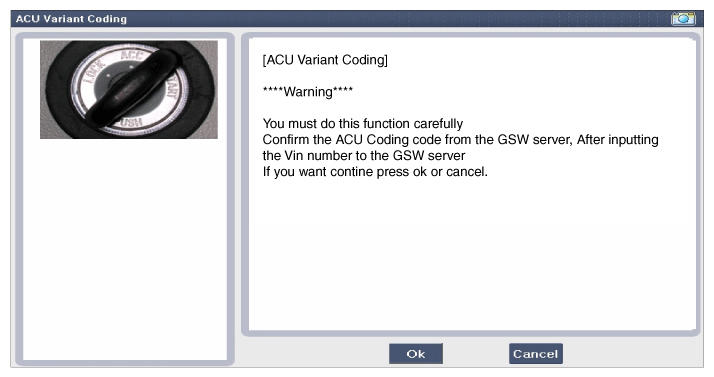

   1. Initial ACU Variant Coding screen
      Fig 1: Display - ACU Variant Coding Screen (1 Of 5)

      Courtesy of HYUNDAI MOTOR AMERICA

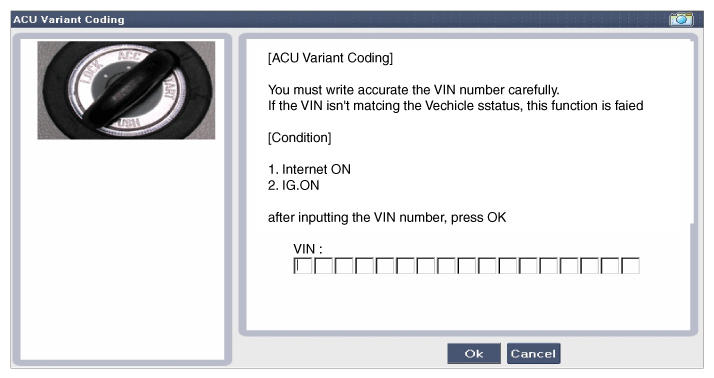

   2. VIN Code entering screen
      Fig 2: Display - ACU Variant Coding Screen (2 Of 5)

      Courtesy of HYUNDAI MOTOR AMERICA

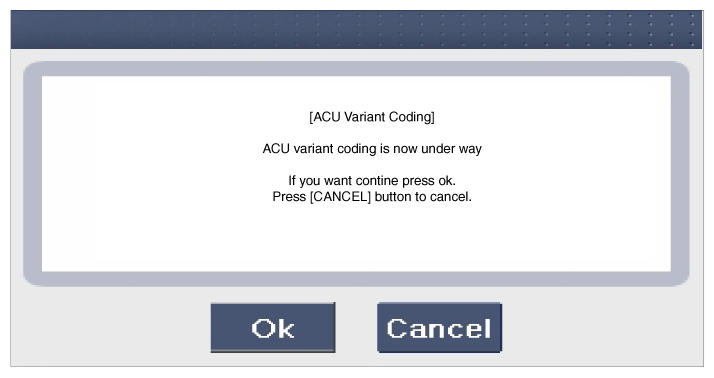

   3. Variant Coding's proceeding screen
      Fig 3: Display - ACU Variant Coding Screen (3 Of 5)

      Courtesy of HYUNDAI MOTOR AMERICA

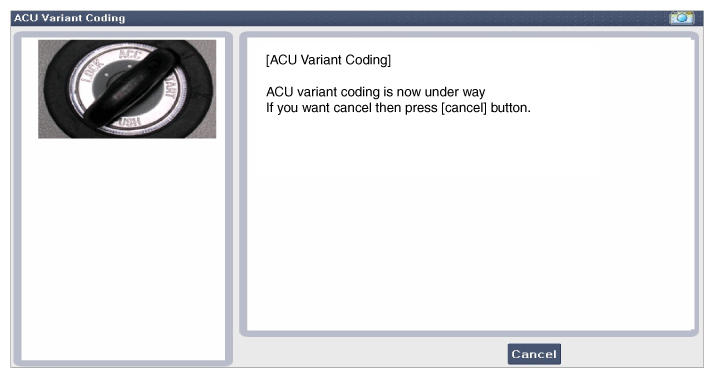

   4. Variant Coding's proceeding screen
      Fig 4: Display - ACU Variant Coding Screen (4 Of 5)

      Courtesy of HYUNDAI MOTOR AMERICA

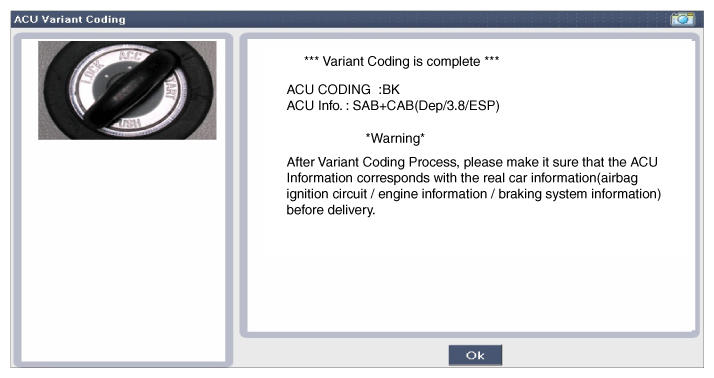

   5. Variant Coding is completed
   Fig 5: Display - ACU Variant Coding Screen (5 Of 5)

   Courtesy of HYUNDAI MOTOR AMERICA
   NOTE:

   1. This screen is shown when you try variant coding on the SRSCM which has been performed before.

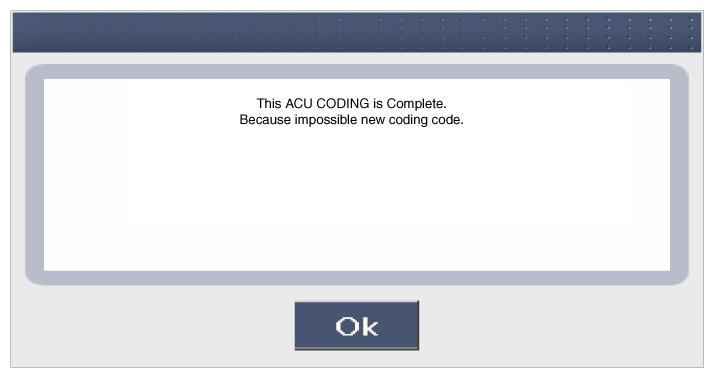

      Fig 6: Display - ACU Coding Completed Screen

      Courtesy of HYUNDAI MOTOR AMERICA
   2. This screen is shown when communication failure has occurred.

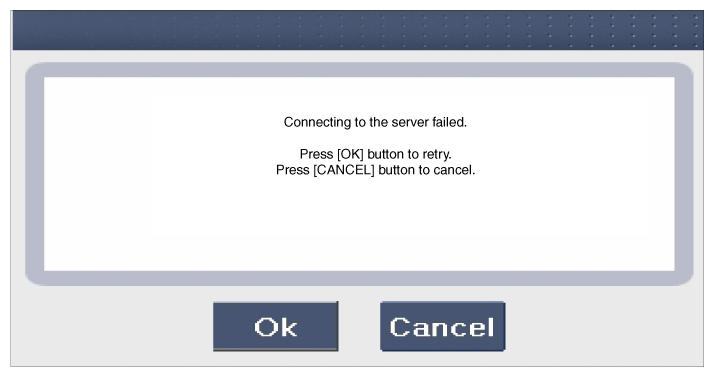

   Fig 7: Display - Communication Failure Screen

   Courtesy of HYUNDAI MOTOR AMERICA

■ Off-line type on GDS (Use when not connected to the internet)

1. Turn the ignition switch OFF.
2. Connect the GDS.
3. Turn the ignition switch ON without the engine running.
4. Select vehicle name and airbag system.
5. Select variant coding mode.
6. Follow the steps on the screen below.

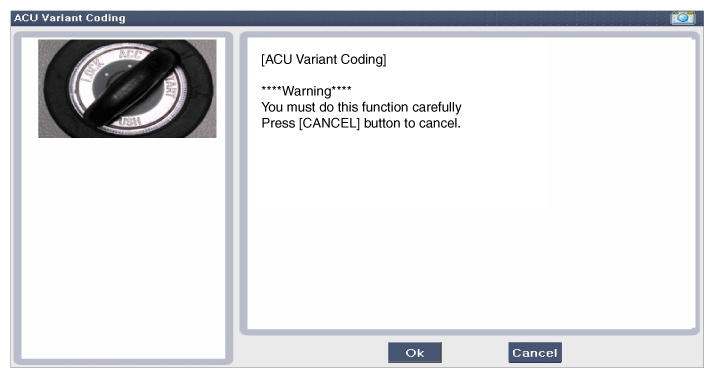

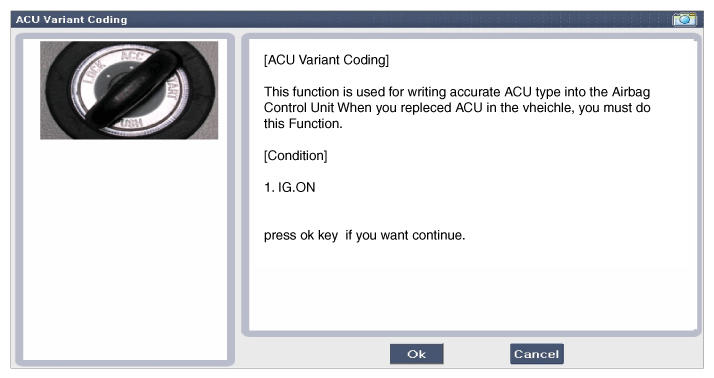

   1. Initial ACU Variant Coding screen
      Fig 8: Display - ACU Variant Coding Screen (1 Of 7)

      Courtesy of HYUNDAI MOTOR AMERICA
   2. ACU Coding Code entering screen
      Fig 9: Display - ACU Variant Coding Screen (2 Of 7)

      Courtesy of HYUNDAI MOTOR AMERICA

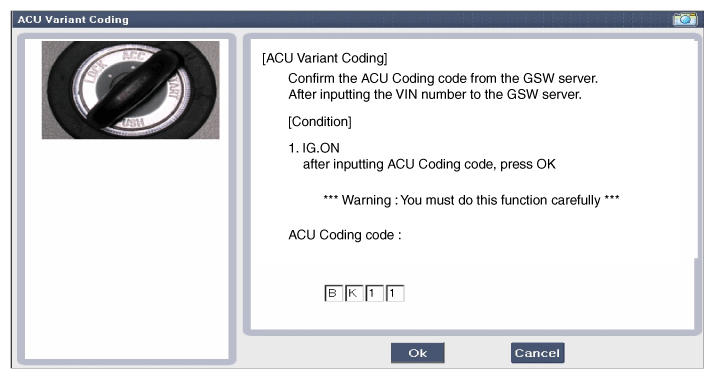

   3. Rechecking ACU Coding Code entering screen
      Fig 10: Display - ACU Variant Coding Screen (3 Of 7)

      Courtesy of HYUNDAI MOTOR AMERICA

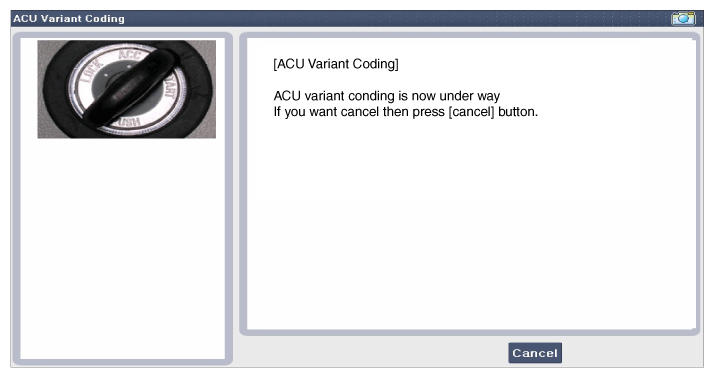

   4. Variant Coding's proceeding screen
      Fig 11: Display - ACU Variant Coding Screen (4 Of 7)

      Courtesy of HYUNDAI MOTOR AMERICA
   5. Variant Coding's proceeding screen
      Fig 12: Display - ACU Variant Coding Screen (5 Of 7)

      Courtesy of HYUNDAI MOTOR AMERICA

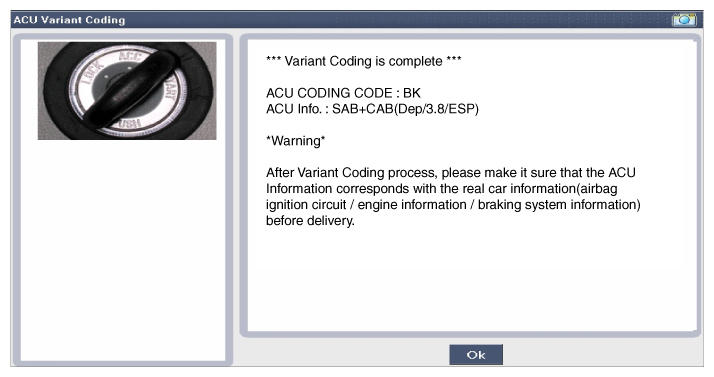

   6. Variant Coding is completed
      Fig 13: Display - ACU Variant Coding Screen (6 Of 7)

      Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:

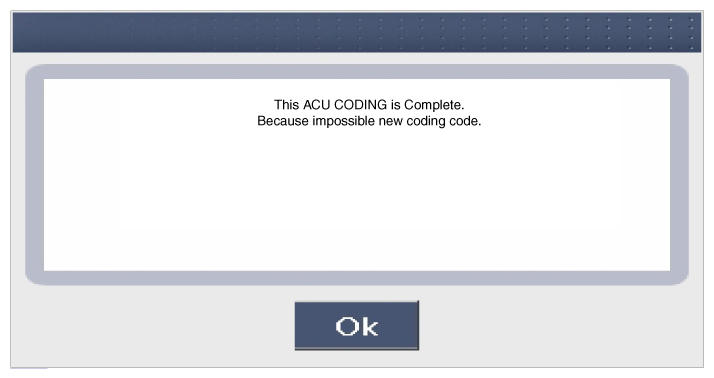

      1. This screen is shown when you try variant coding on the SRSCM which has been performed before.
      Fig 14: Display - ACU Variant Coding Screen (7 Of 7)

      Courtesy of HYUNDAI MOTOR AMERICA
