Smart Key Control Module Connector End View (M06-A)

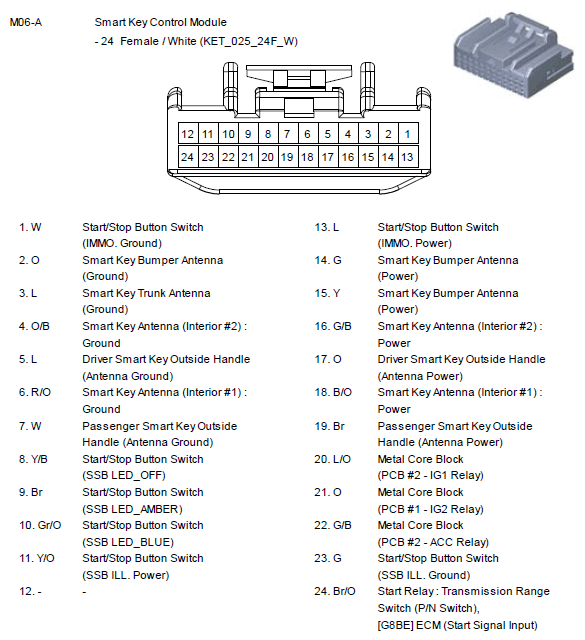

Fig 1: Smart Key Control Module Connector End View (M06-A)
G10790519Courtesy of HYUNDAI MOTOR AMERICA
