Variant Coding Procedure

On-line type on GDS
1. Turn the ignition switch OFF.
2. Connect the GDS.
3. Turn the ignition switch ON without the engine running.
4. Select vehicle name and airbag system.
5. Select variant coding mode.
6. Follow the steps on the screen below.

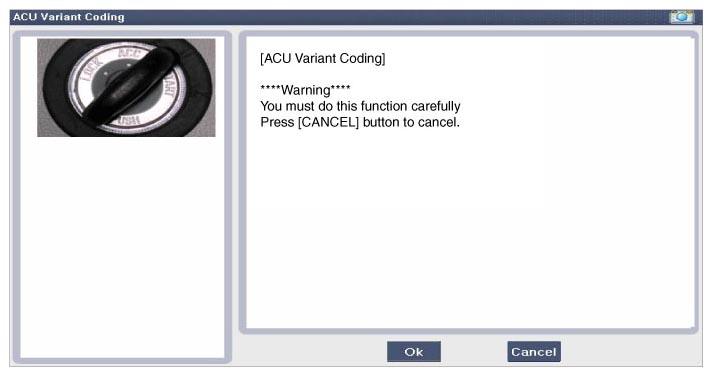

  1. Initial ACU Variant Coding screen

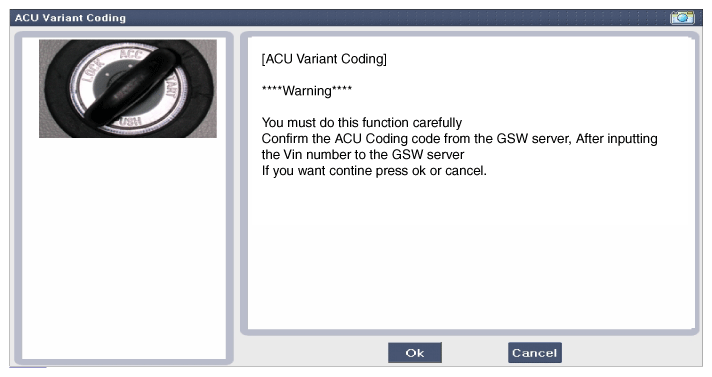

    Fig 1: Display - ACU Variant Coding Screen
    Courtesy of HYUNDAI MOTOR AMERICA
  2. VIN Code entering screen

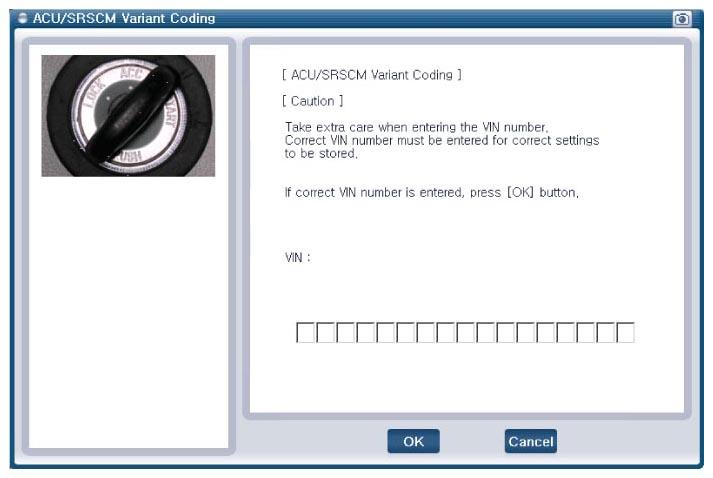

    Fig 2: Display - VIN Code Entering Screen
    Courtesy of HYUNDAI MOTOR AMERICA

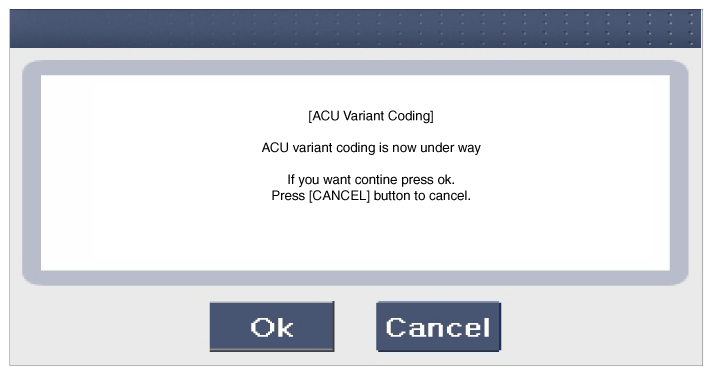

  3. Variant Coding's proceeding screen-1

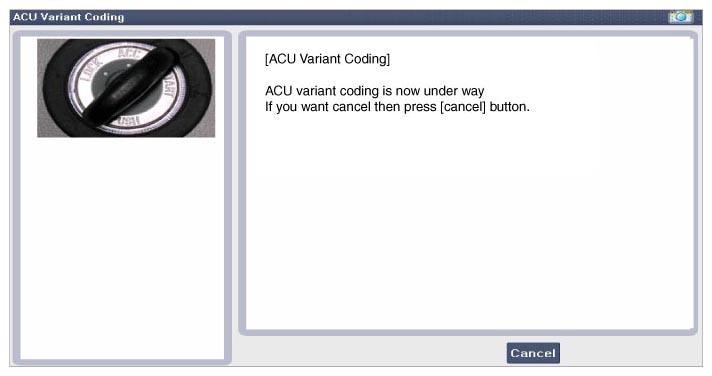

    Fig 3: Display - Variant Coding Proceeding Screen-1
    Courtesy of HYUNDAI MOTOR AMERICA

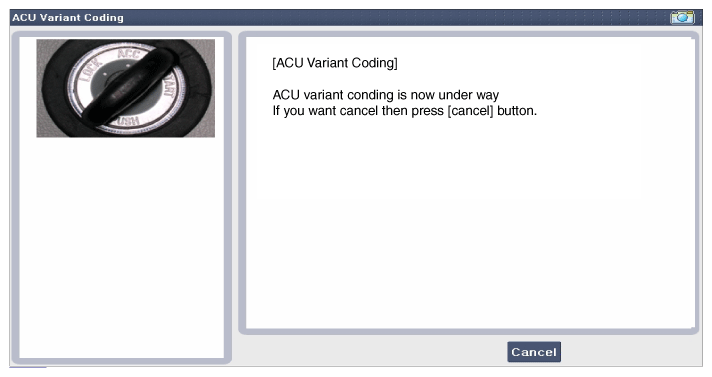

  4. Variant Coding's proceeding screen-2

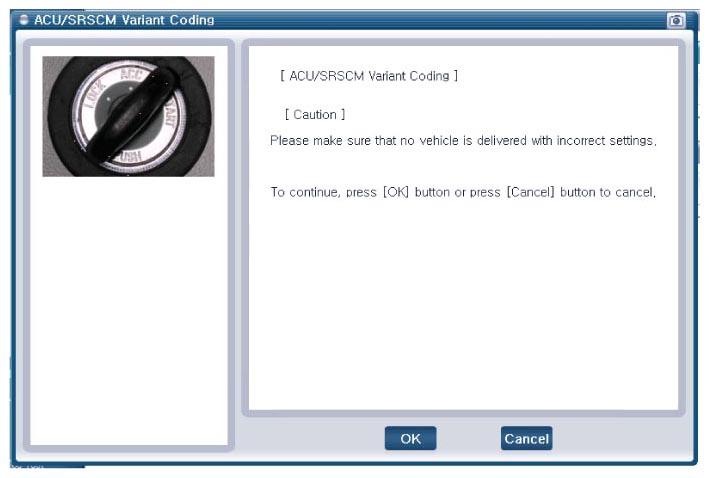

    Fig 4: Display - Variant Coding Proceeding Screen-2
    Courtesy of HYUNDAI MOTOR AMERICA

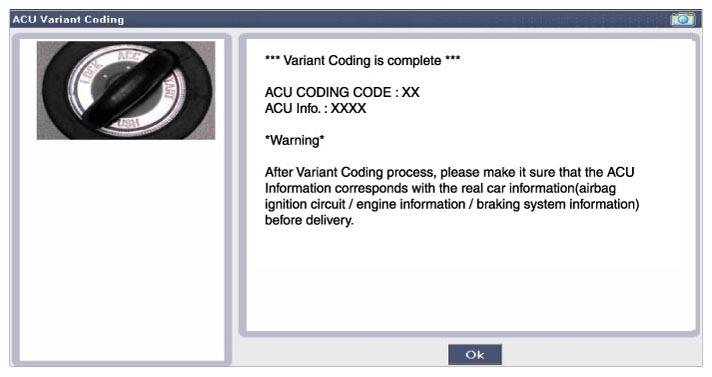

  5. Variant Coding is completed

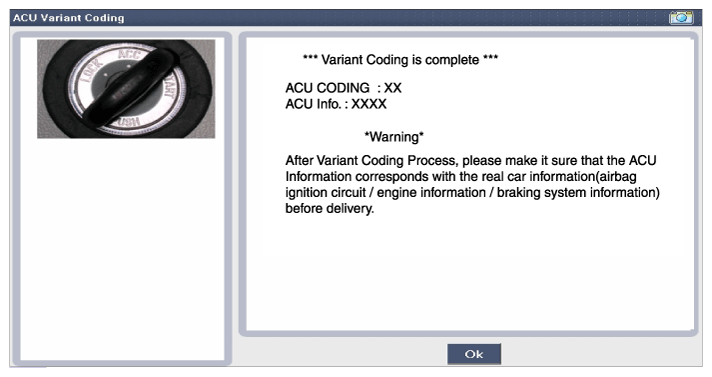

    Fig 5: Display - Variant Coding Completed Screen
    Courtesy of HYUNDAI MOTOR AMERICA
  NOTE:
  1. This screen is shown when you try variant coding on the SRSCM which has been performed before.

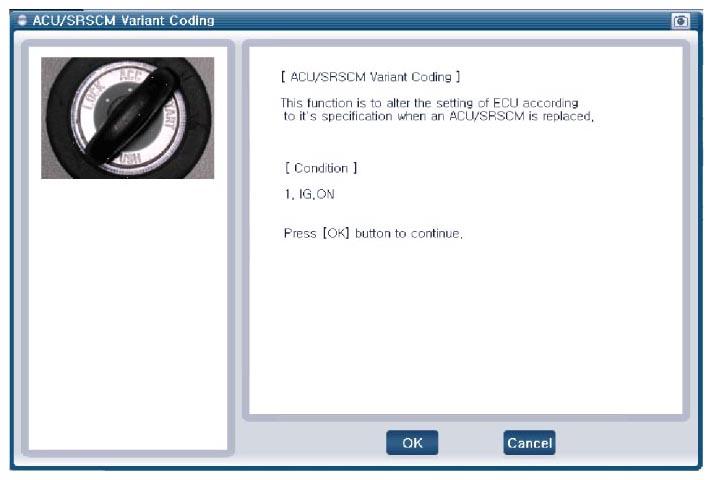

    Fig 6: Display - ACU/SRSCM Variant Coding Screen
    Courtesy of HYUNDAI MOTOR AMERICA
  2. This screen is shown when communication failure has occurred.

    Fig 7: Display - ACU/SRSCM Variant Coding Screen
    Courtesy of HYUNDAI MOTOR AMERICA
Off-line type on GDS (Use when not connected to the internet)
1. Turn the ignition switch OFF.
2. Connect the GDS.
3. Turn the ignition switch ON without the engine running.
4. Select vehicle name and airbag system.
5. Select variant coding mode.
6. Follow the steps on the screen below.
  1. Initial ACU Variant Coding screen

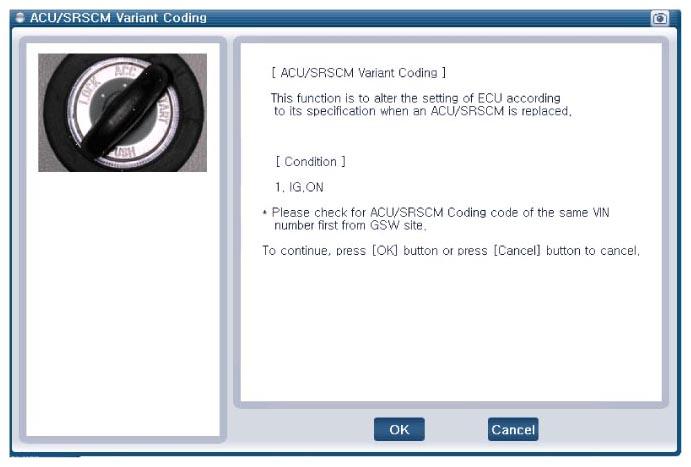

    Fig 8: Display - ACU Variant Coding Screen
    Courtesy of HYUNDAI MOTOR AMERICA
  2. ACU Coding Code entering screen

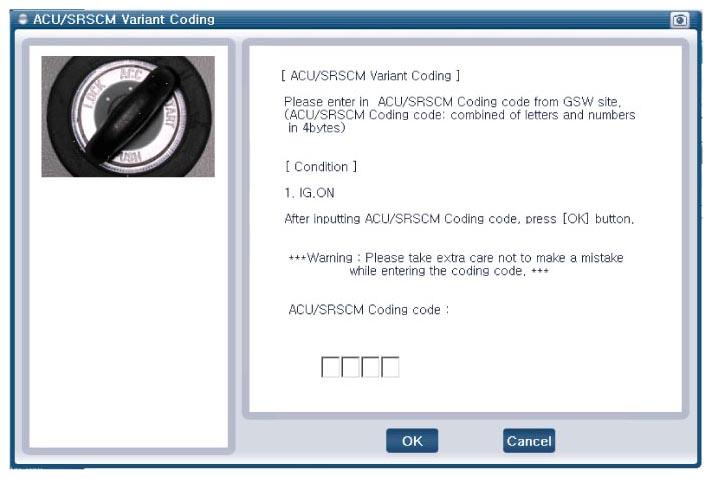

    Fig 9: Display - ACU/SRSCM Variant Coding Screen
    Courtesy of HYUNDAI MOTOR AMERICA
  3. Rechecking ACU Coding Code entering screen

    Fig 10: Display - ACU Variant Coding Screen
    Courtesy of HYUNDAI MOTOR AMERICA
  4. Variant Coding's proceeding screen-1

    Fig 11: Display - Variant Coding Proceeding Screen-1
    Courtesy of HYUNDAI MOTOR AMERICA
  5. Variant Coding's proceeding screen-2

    Fig 12: Display - Variant Coding Proceeding Screen-2
    Courtesy of HYUNDAI MOTOR AMERICA
  6. Variant Coding is completed

    Fig 13: Display - Variant Coding Proceeding Screen-2
    Courtesy of HYUNDAI MOTOR AMERICA

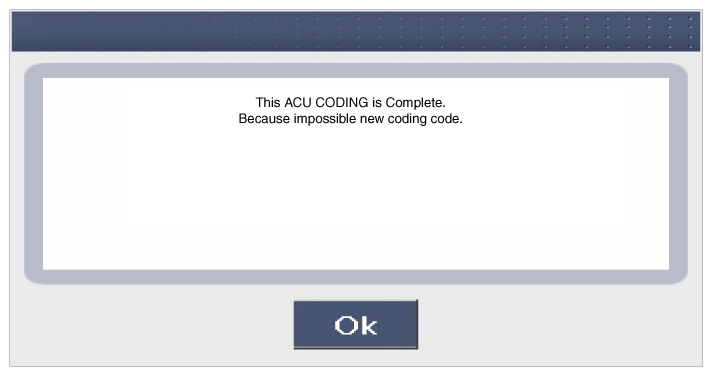

    NOTE:
    This screen is shown when you try variant coding on the SRSCM which has been performed before.

    Fig 14: Display - ACU Coding Completed Screen
    Courtesy of HYUNDAI MOTOR AMERICA
