Components Location

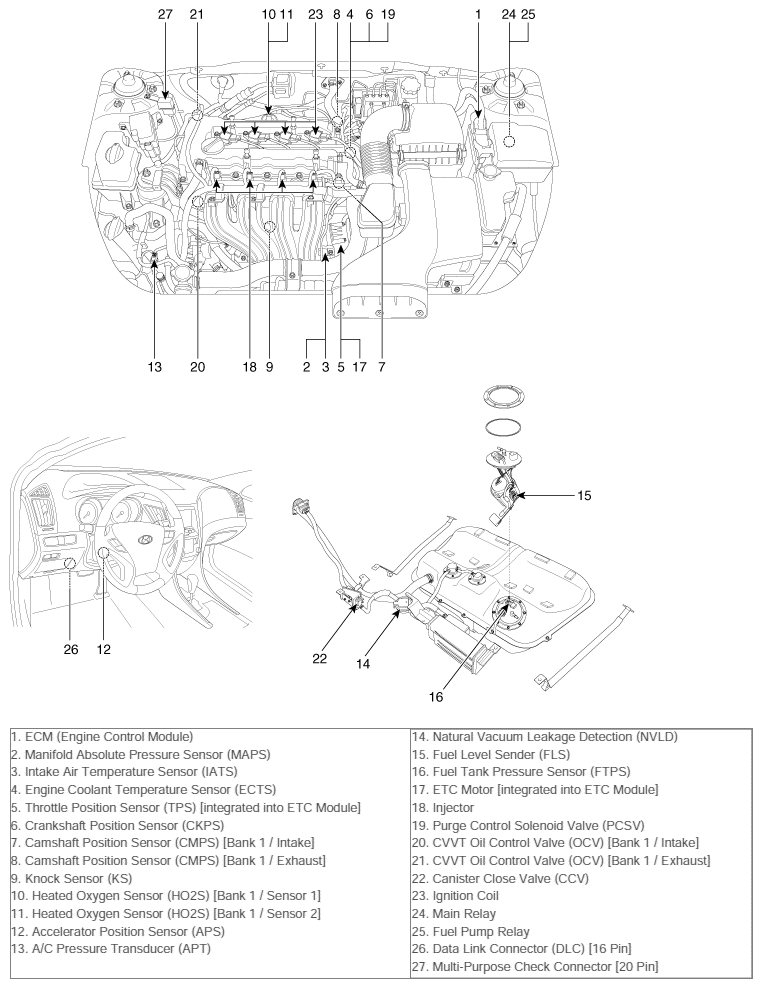

Fig 1: Identifying Engine Control/Fuel Components (1 Of 4)
G10588595Courtesy of HYUNDAI MOTOR AMERICA

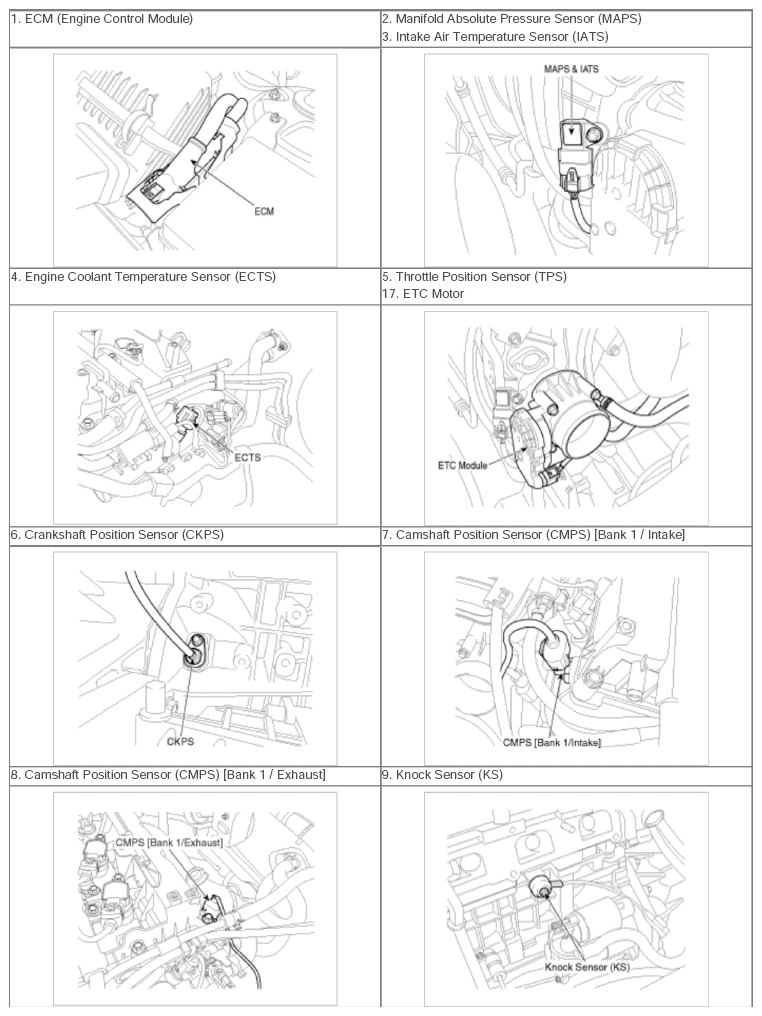

Fig 2: Identifying Engine Control/Fuel Components (2 Of 4)
G10588596Courtesy of HYUNDAI MOTOR AMERICA

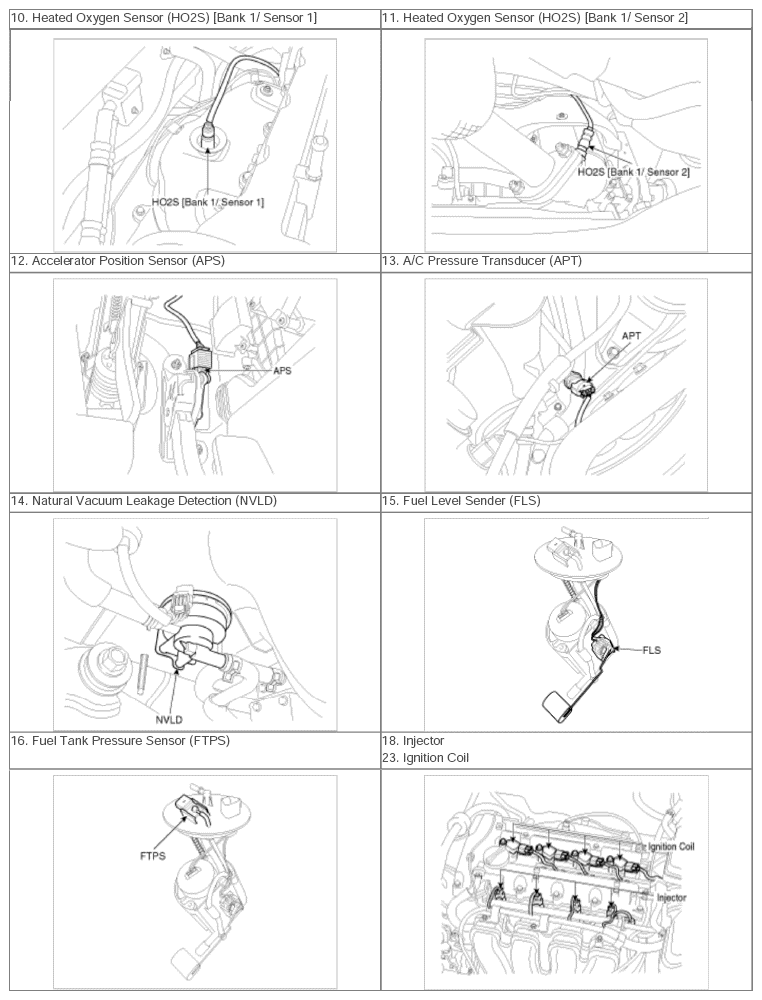

Fig 3: Identifying Engine Control/Fuel Components (3 Of 4)
G10588597Courtesy of HYUNDAI MOTOR AMERICA

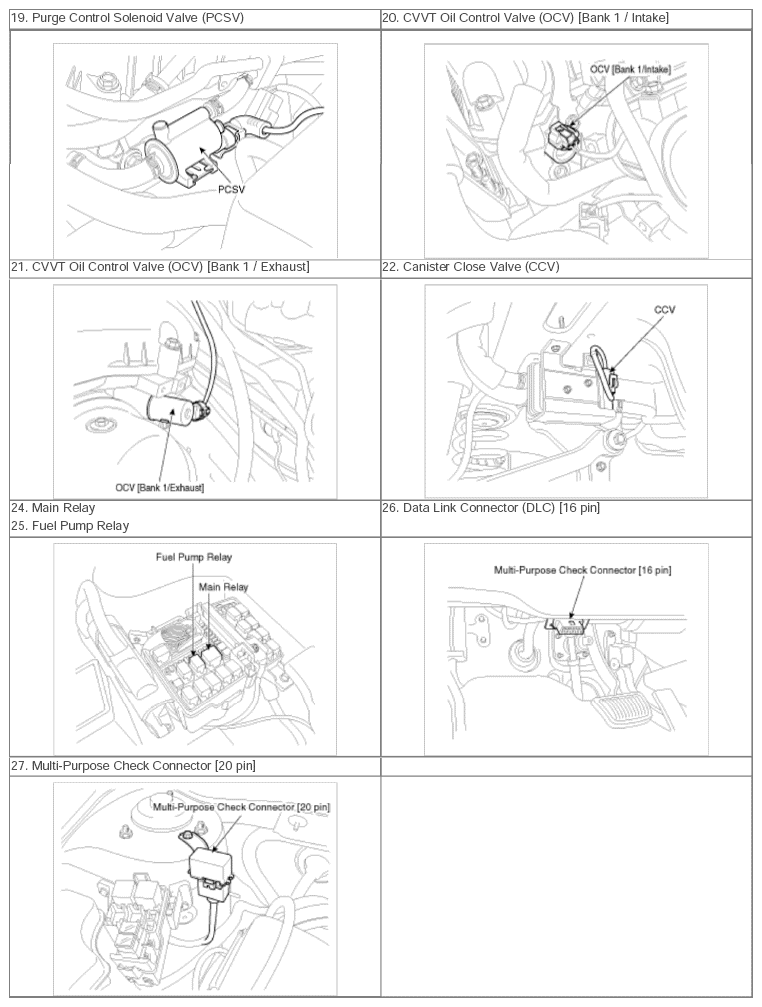

Fig 4: Identifying Engine Control/Fuel Components (4 Of 4)
G10588598Courtesy of HYUNDAI MOTOR AMERICA
