Circuit Diagram

(M/T)

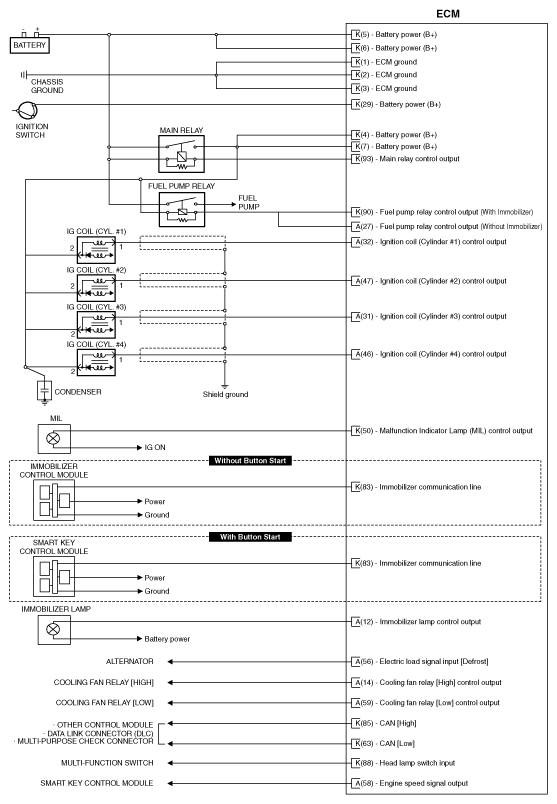

Fig 1: ECM Circuit Diagram (M/T) (1 Of 4)
G10611442Courtesy of HYUNDAI MOTOR AMERICA

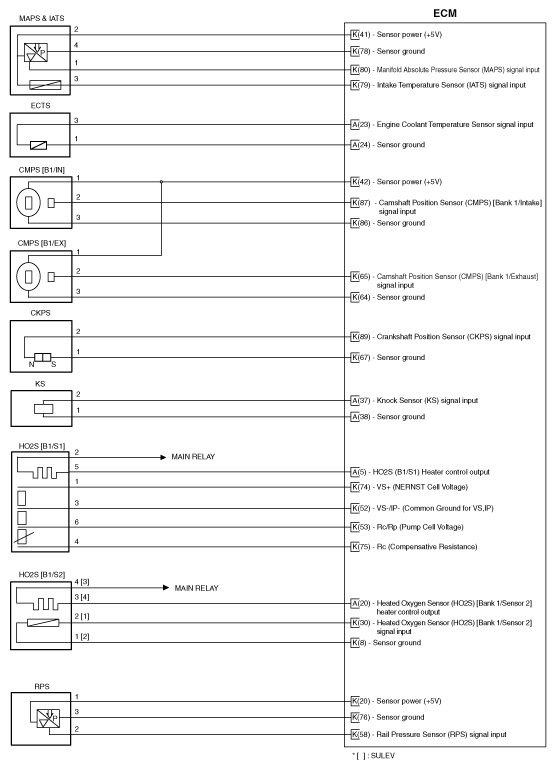

Fig 2: ECM Circuit Diagram (M/T) (2 Of 4)
G10611443Courtesy of HYUNDAI MOTOR AMERICA

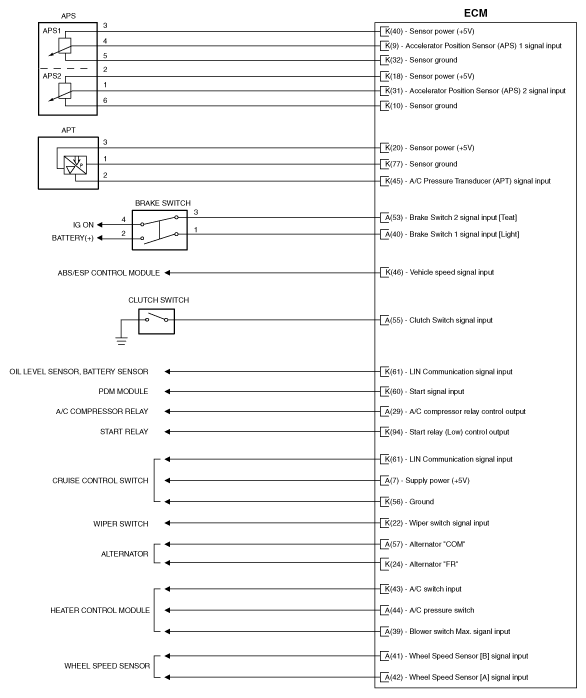

Fig 3: ECM Circuit Diagram (M/T) (3 Of 4)
G10611444Courtesy of HYUNDAI MOTOR AMERICA

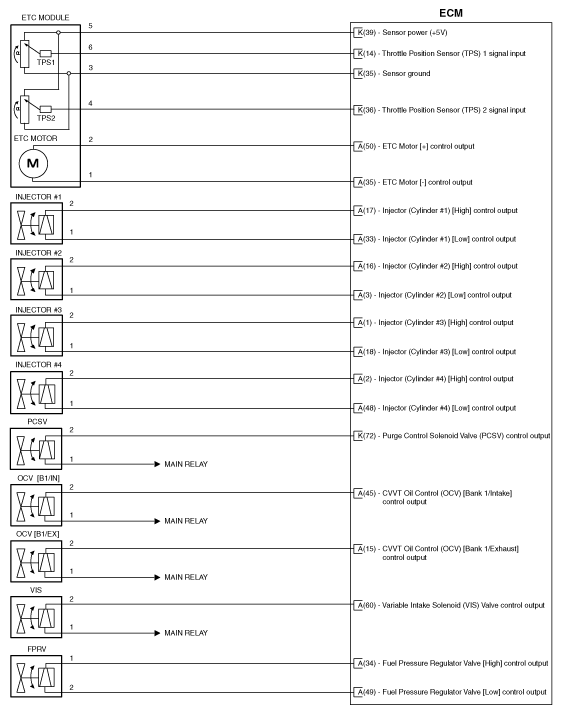

Fig 4: ECM Circuit Diagram (M/T) (4 Of 4)
G10611445Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

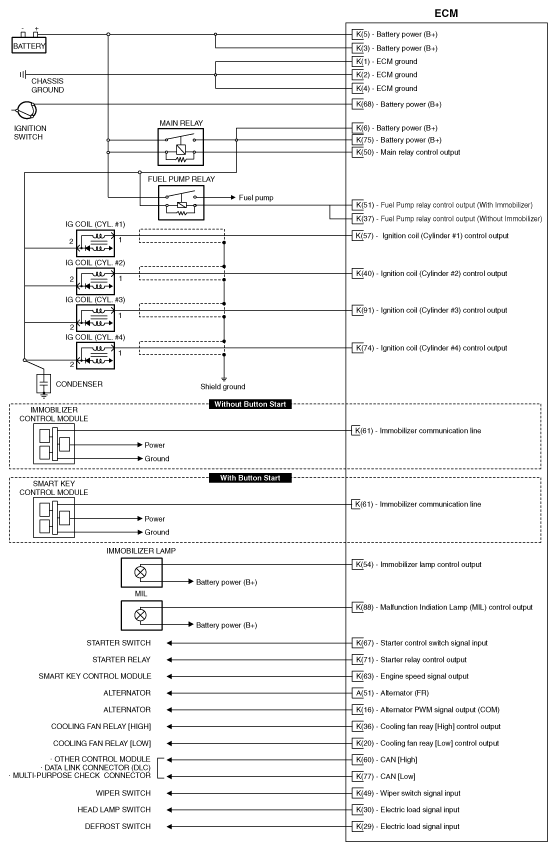

Fig 5: ECM Circuit Diagram (A/T) (1 Of 4)
G10611446Courtesy of HYUNDAI MOTOR AMERICA

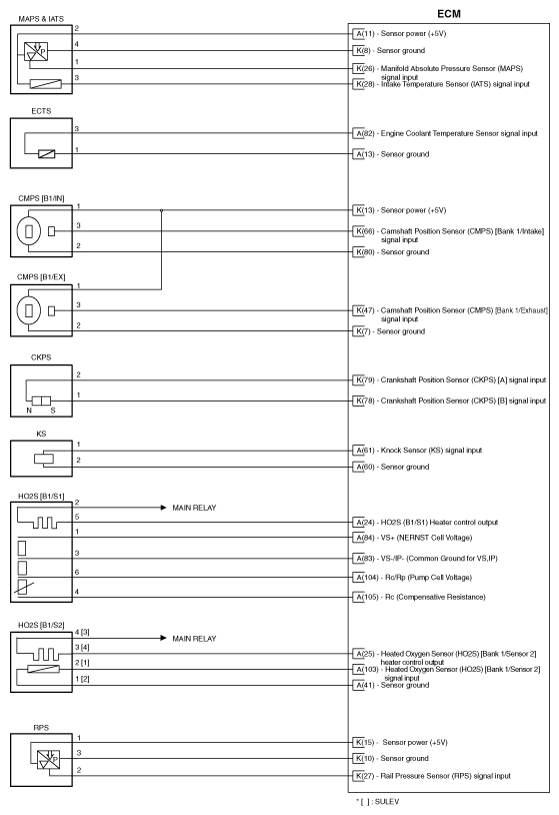

Fig 6: ECM Circuit Diagram (A/T) (2 Of 4)
G10611447Courtesy of HYUNDAI MOTOR AMERICA

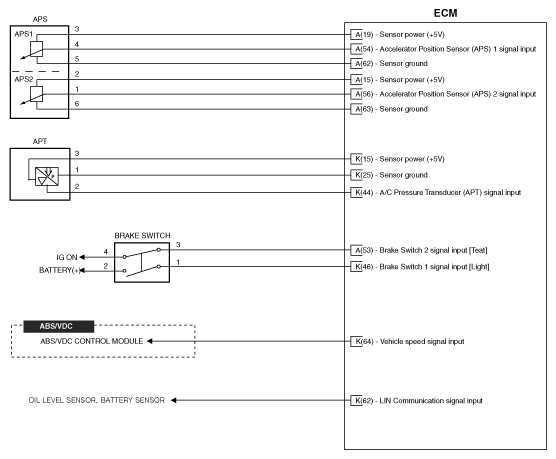

Fig 7: ECM Circuit Diagram (A/T) (3 Of 4)
G10611448Courtesy of HYUNDAI MOTOR AMERICA

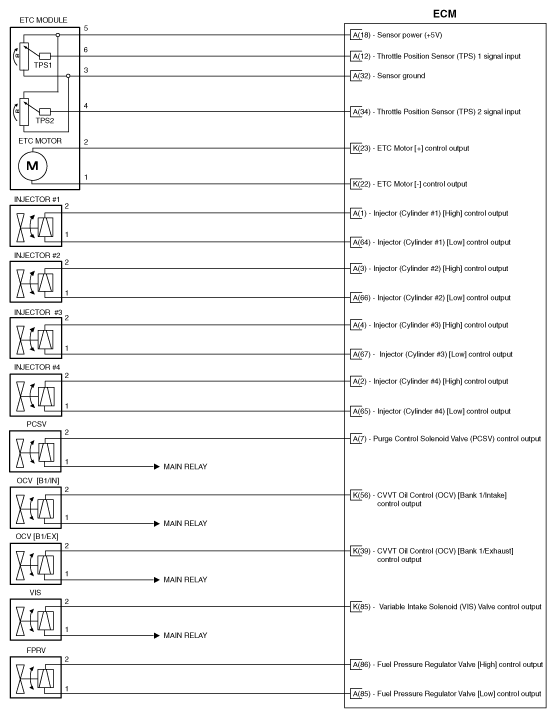

Fig 8: ECM Circuit Diagram (A/T) (4 Of 4)
G10611449Courtesy of HYUNDAI MOTOR AMERICA
