Components Location: Notes

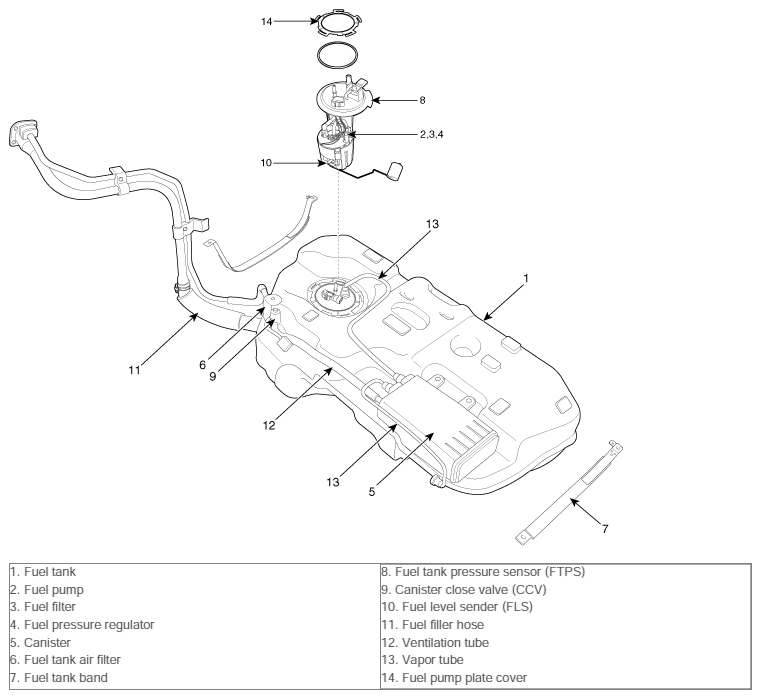

Fig 1: Fuel Delivery System Components (1 Of 2)

G10611562

Courtesy of HYUNDAI MOTOR AMERICA
