[Longitudinal G Sensor Calibration]

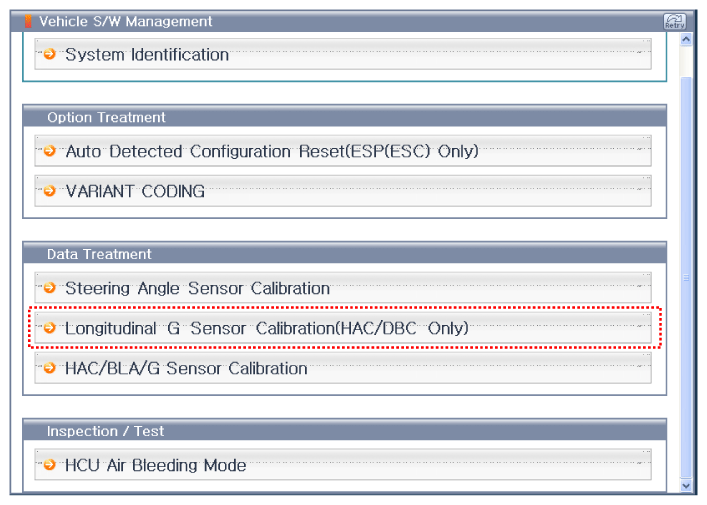

Fig 1: Display - Longitudinal G Sensor Calibration Screen (1 Of 2)
G10612503Courtesy of HYUNDAI MOTOR AMERICA

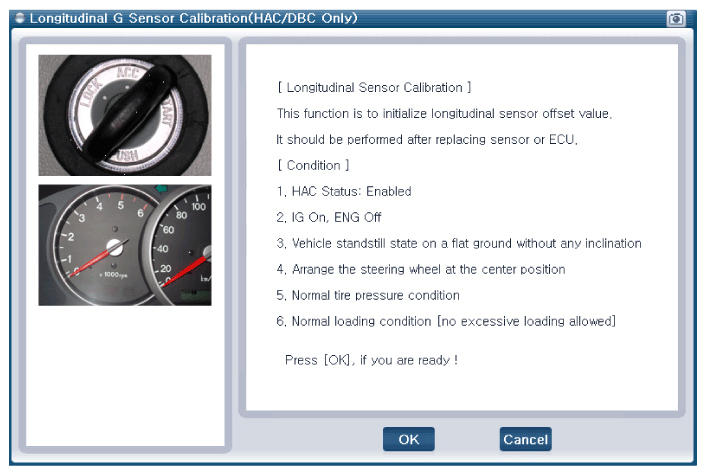

Fig 2: Display - Longitudinal G Sensor Calibration Screen (2 Of 2)
G10612504Courtesy of HYUNDAI MOTOR AMERICA
