Circuit Diagram

(M/T)

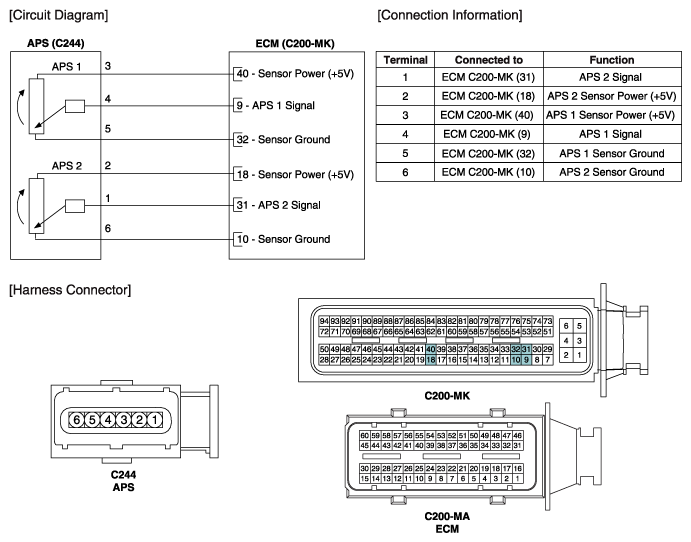

Fig 1: APS Circuit Diagram (M/T)
G10611511Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

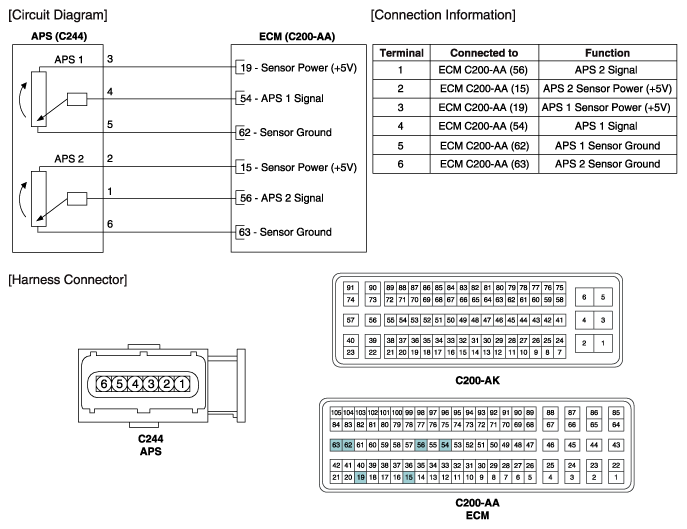

Fig 2: APS Circuit Diagram (A/T)
G10611512Courtesy of HYUNDAI MOTOR AMERICA
