Circuit Diagram

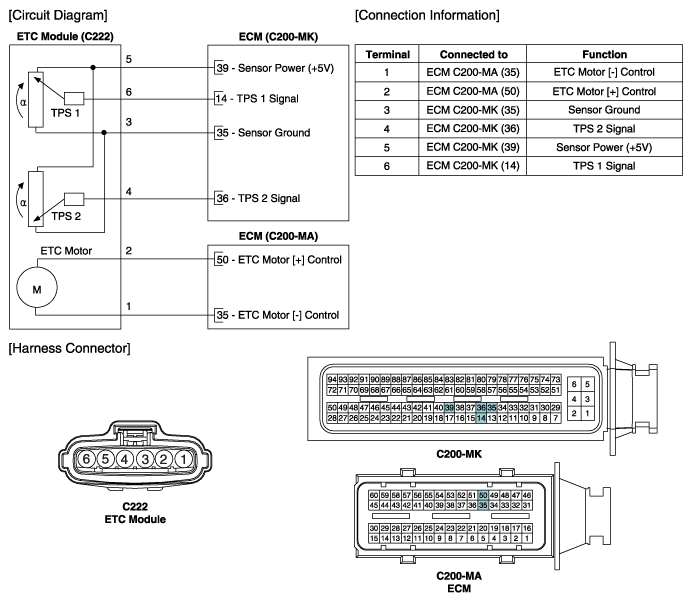

(M/T)

Fig 1: ETC Module Circuit Diagram (M/T)
G10611459Courtesy of HYUNDAI MOTOR AMERICA

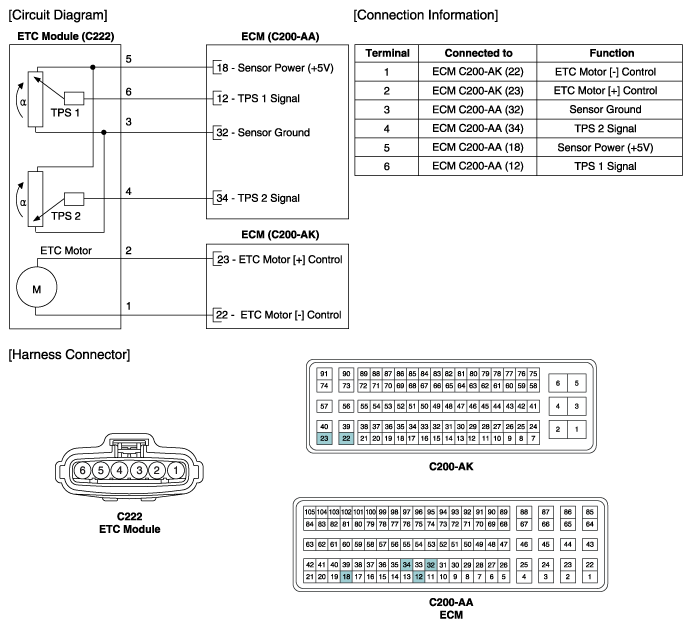

(A/T)

Fig 2: ETC Module Circuit Diagram (A/T)
G10611460Courtesy of HYUNDAI MOTOR AMERICA
