Components Location

[Vehicle Components]

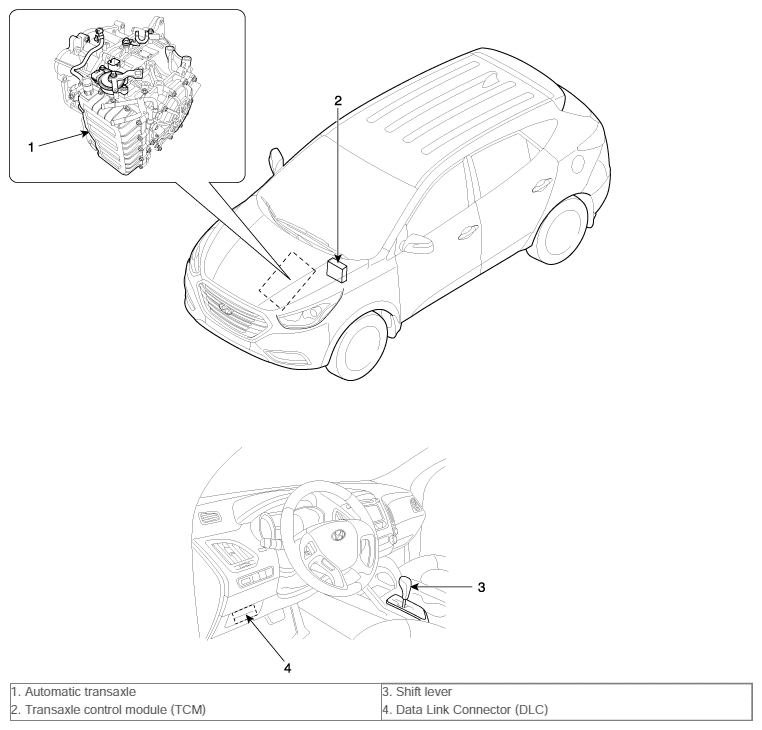

Fig 1: Automatic Transaxle, Shift Lever And Data Link Connector
G10611737Courtesy of HYUNDAI MOTOR AMERICA

[Transaxle Components]

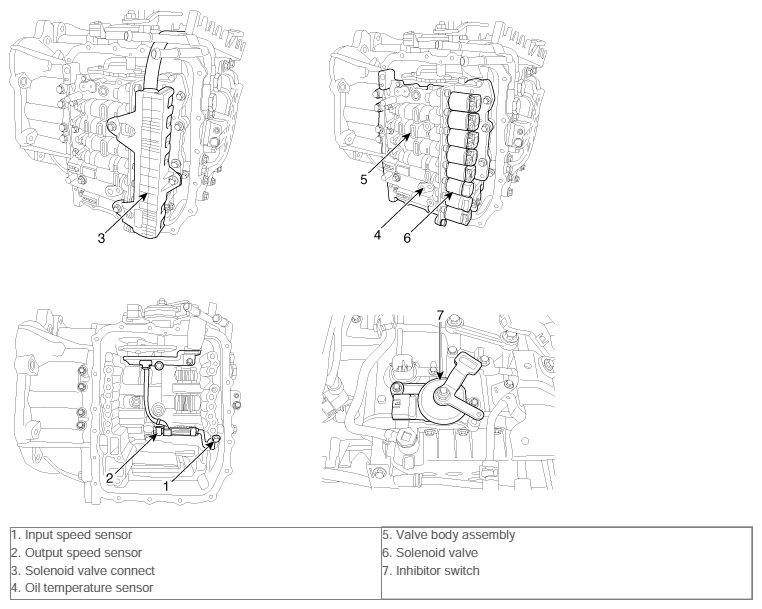

Fig 2: Input Speed Sensor, Solenoid Valve And Inhibitor Switch
G10611738Courtesy of HYUNDAI MOTOR AMERICA
