Components Location

[Vehicle Components]

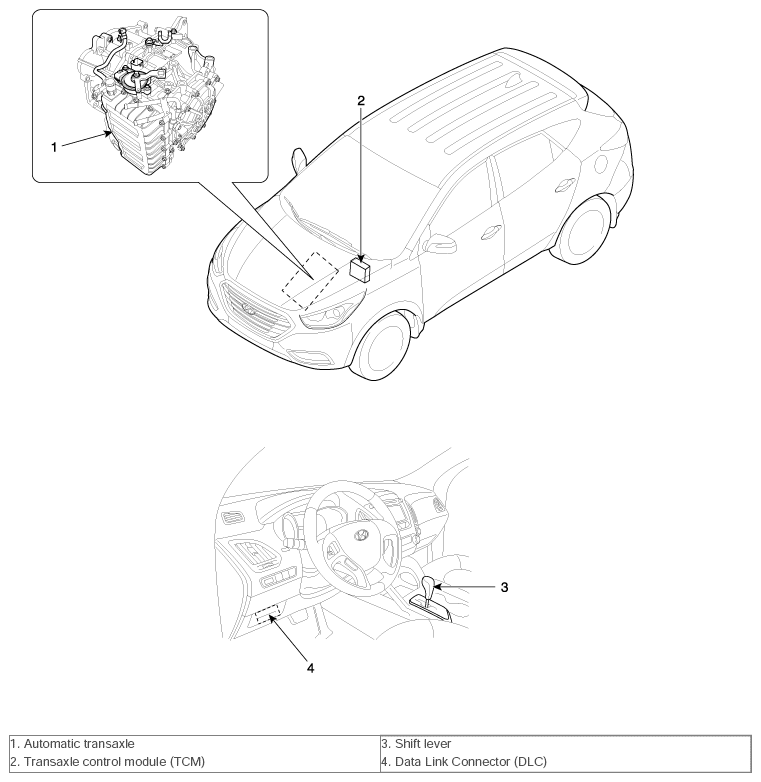

Fig 1: Transaxle Control Module Related Components (Vehicle)
G10631714Courtesy of HYUNDAI MOTOR AMERICA

[Transaxle Components]

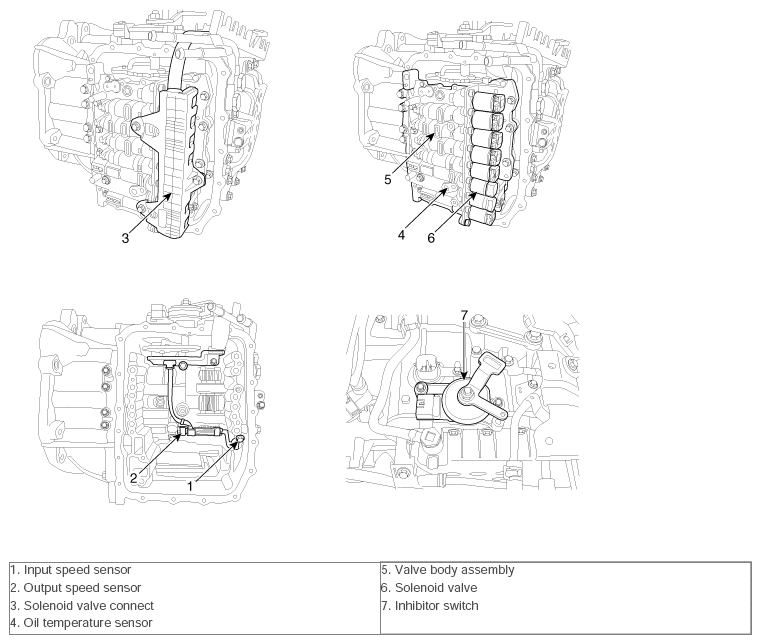

Fig 2: Transaxle Control Module Related Components (Transaxle)
G10631715Courtesy of HYUNDAI MOTOR AMERICA
