Circuit Diagram

(M/T)

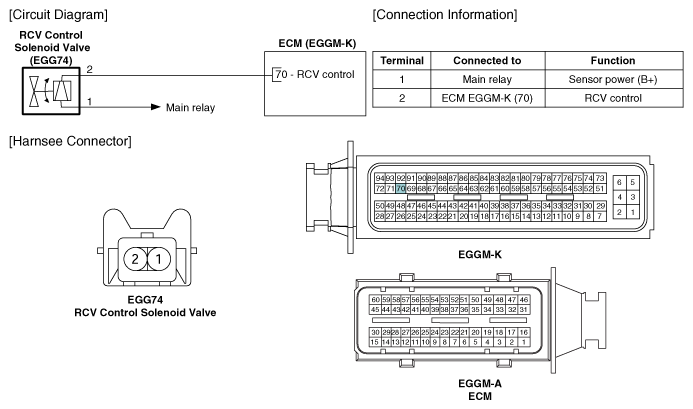

Fig 1: Recirculation Valve Control Solenoid Valve Circuit Diagram (M/T) With Connector End Views
G10604616Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

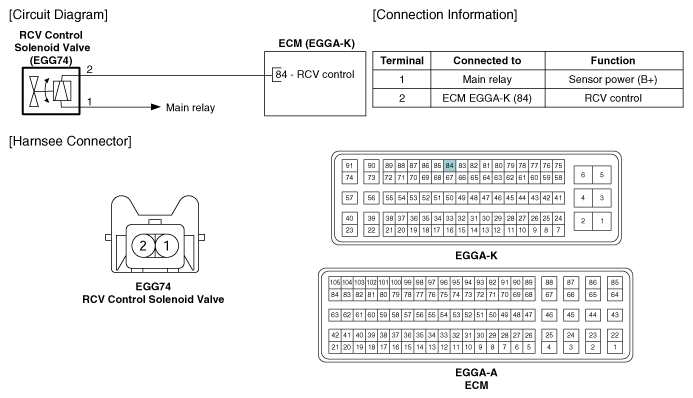

Fig 2: Recirculation Valve Control Solenoid Valve Circuit Diagram (A/T) With Connector End Views
G10604617Courtesy of HYUNDAI MOTOR AMERICA
