ESC Module Connector End View (E03)

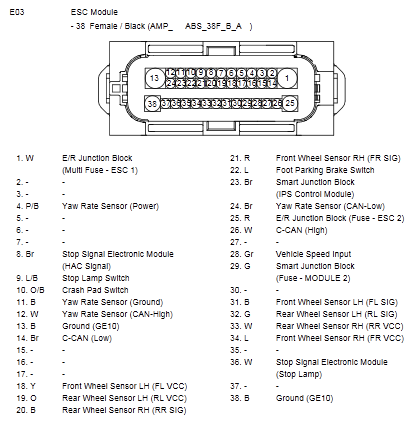

Fig 1: ESC Module Connector End View (E03)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
