Bluetooth Remote Control Switch (LH LOW) Connector End View (M104)

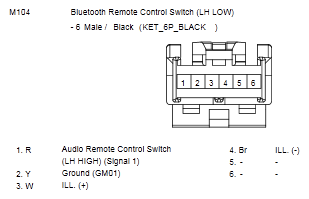

Fig 1: Bluetooth Remote Control Switch (LH LOW) Connector End View (M104)
G10776206Courtesy of HYUNDAI MOTOR AMERICA
