Driver CCS Control Module Connector End View (S10-A)

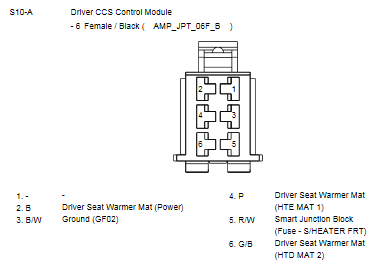

Fig 1: Driver CCS Control Module Connector End View (S10-A)
G10776438Courtesy of HYUNDAI MOTOR AMERICA
