PODS Reset

Ignition "OFF", connect scantool.
Ignition "ON" Engine "OFF", select Passenger Occupant Detecting System and select "PODS Reset" mode.
And then press "ENTER"

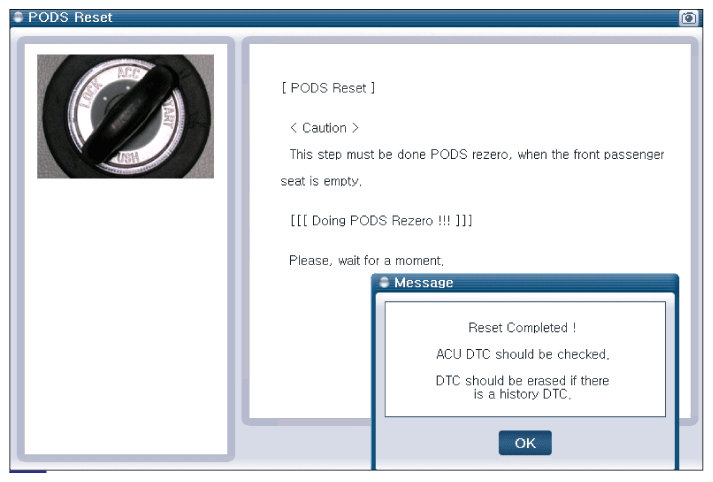

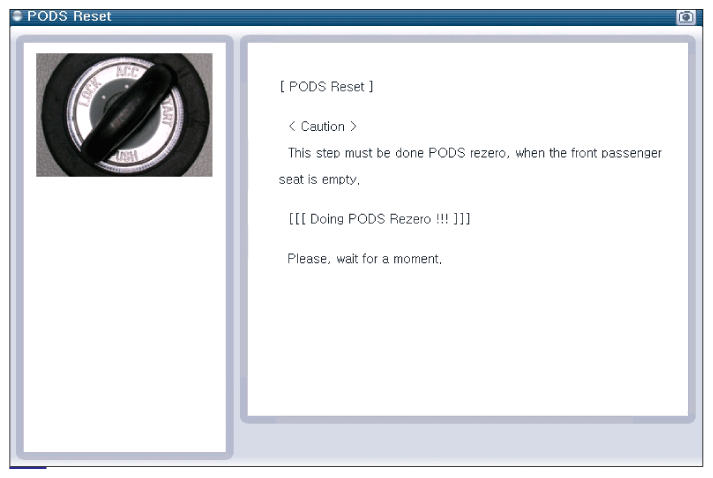

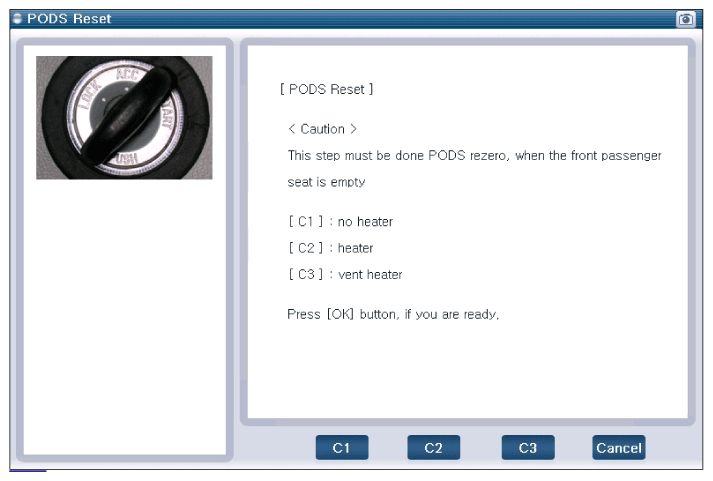

Fig 1: Display - PODS Reset 1 Screen
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Display - PODS Reset 2 Screen
Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Display - PODS Reset 3 Screen
Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Display - PODS Reset 4 Screen
Courtesy of HYUNDAI MOTOR AMERICA
Monitor the "PAB Real Time Information Of Current Data" parameter on the Scantool.

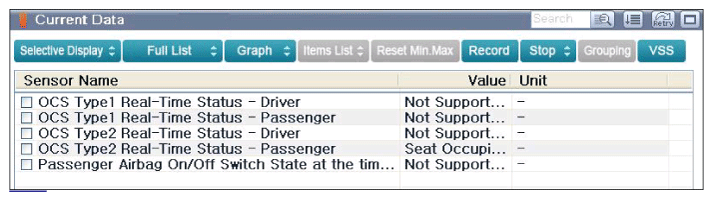

Fig 5: Display - PAB Real Time Current Data Status Screen
Courtesy of HYUNDAI MOTOR AMERICA
Is DTC present problem?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Displaying nothing (no DTC) or DTC with label "H"(historical) shows that Fault is intermittent caused by poor contact in the part's and/or Passenger side PODS-F sensor Mat & ECU connector or was repaired and Passenger side PODS-F sensor Mat & ECU memory was not cleared.
  Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
