Signal Waveform & Data

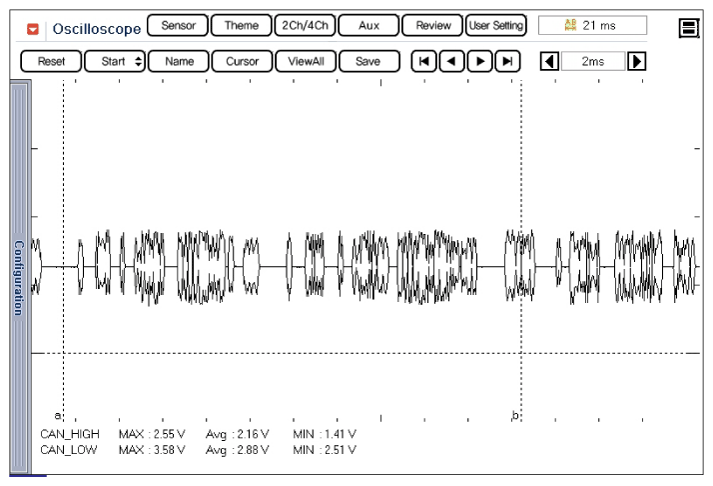

Fig 1: Screen Display - C CAN Low/High Signal Waveform
G10371318Courtesy of HYUNDAI MOTOR AMERICA

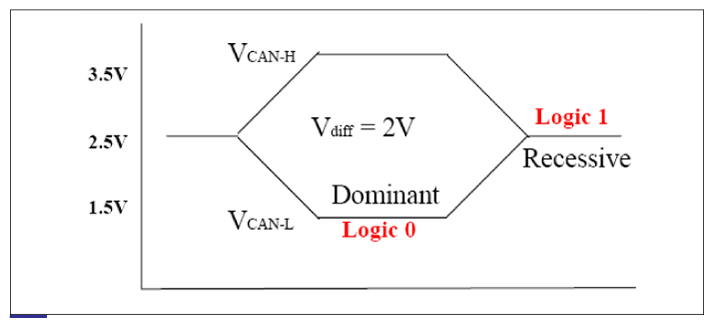

Fig 2: Screen Display - C CAN BUS Voltage Level (High Speed CAN)
G10371319Courtesy of HYUNDAI MOTOR AMERICA
