Front Body B

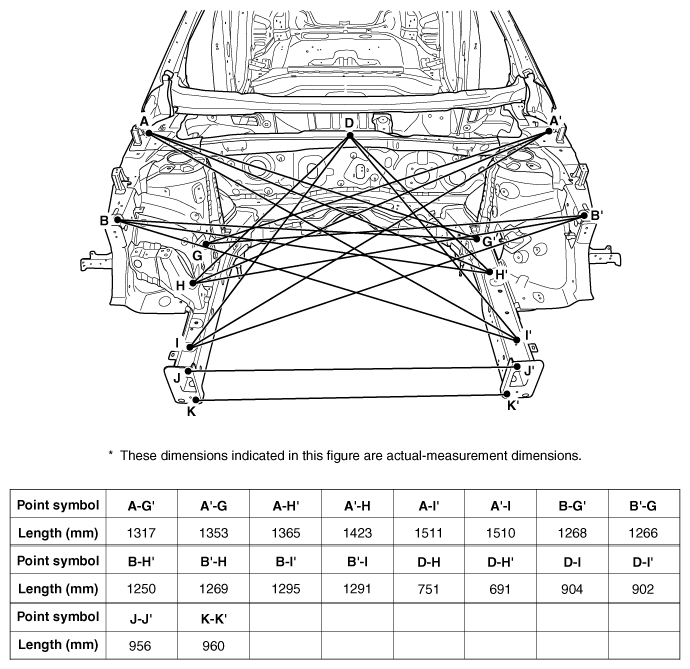

Fig 1: Front Body B Dimensions
G10368277Courtesy of HYUNDAI MOTOR AMERICA

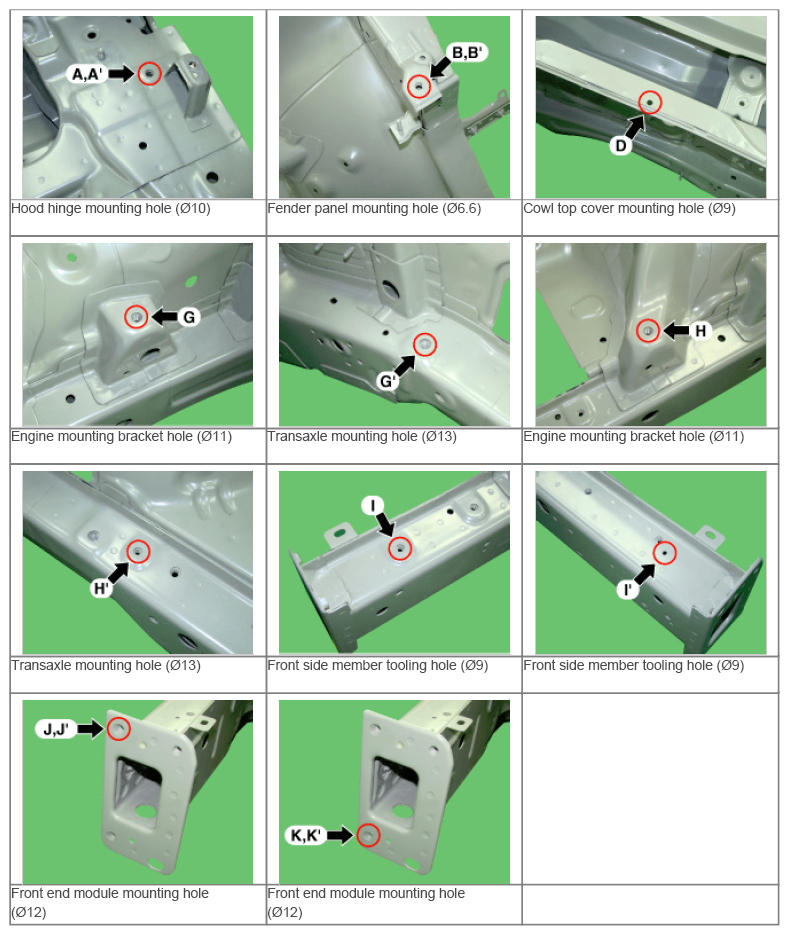

Fig 2: Transaxle Mounting Hole And Engine Mounting Bracket Hole Dimensions
G10368278Courtesy of HYUNDAI MOTOR AMERICA
