Body Repair

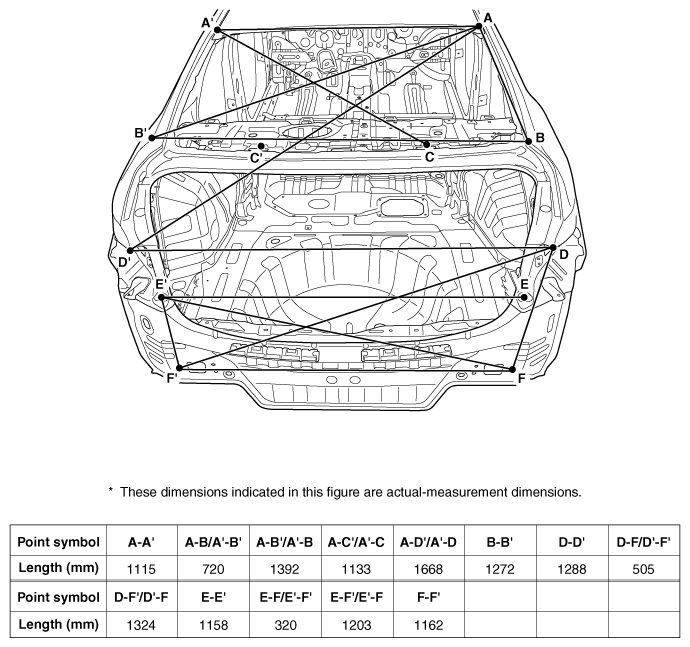

Fig 1: Rear Body Dimensions
G10368293Courtesy of HYUNDAI MOTOR AMERICA

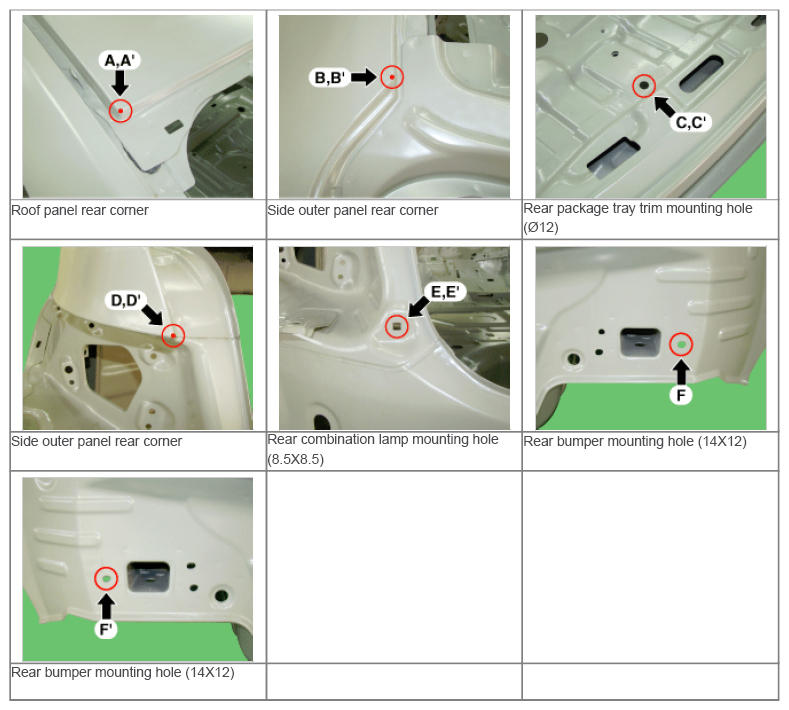

Fig 2: Roof And Side Outer Panel Rear Corners
G10368294Courtesy of HYUNDAI MOTOR AMERICA
