EMS Block Connector End View (E/R-B)

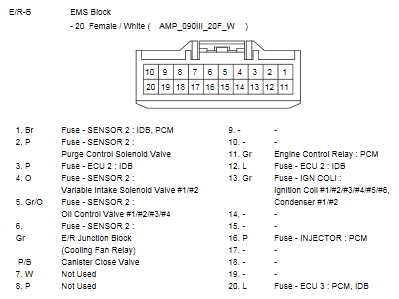

Fig 1: EMS Block Connector End View (E/R-B)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
