Valve Body Flow

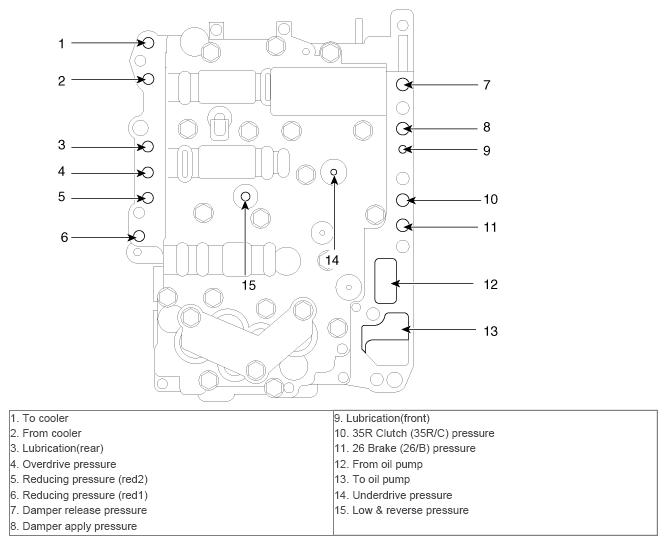

Fig 1: Valve Body Flow
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
