Hyundai
>>
2016
>>
Elantra SE, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 1.8L
>>
ETC (Electronic Throttle Control) System
>>
Schematic Diagrams
>>
Circuit Diagram
>>
(A/T)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram: (A/T)

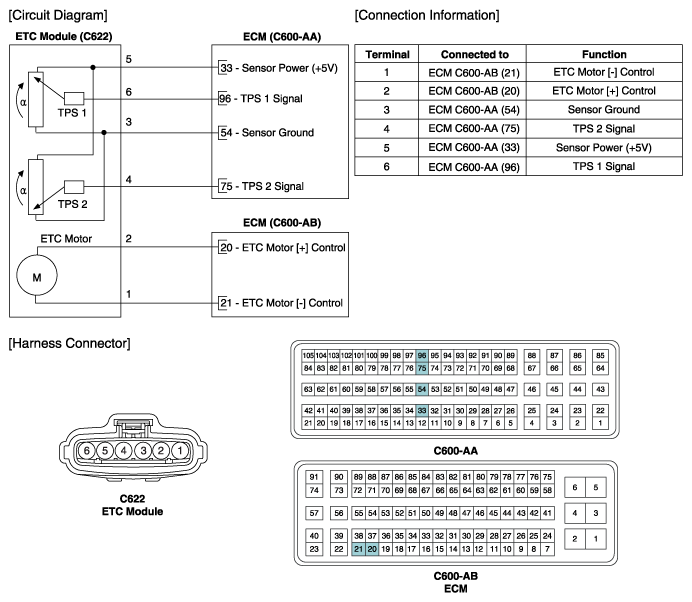

Fig 1: ETC Module - Circuit Diagram (A/T)
