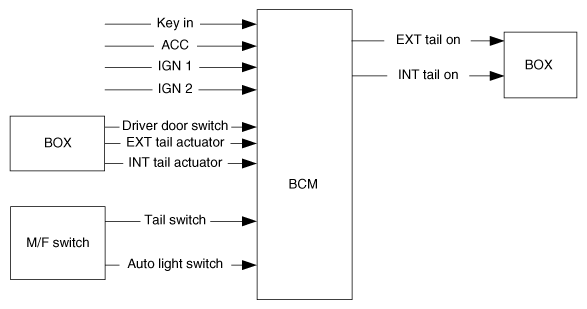

Tail Lamp Function Block Diagram
TAIL LAMP FUNCTION IN/OUT LIST
| Function | Characteristics | Name | |
|---|---|---|---|
| Hardware Label | Spec. Designation | ||
| Input | Logic | L_IGN1 | IGN1 |
| L_KeyIn | Key In Signal | ||
| L_IGN2 | IGN2 | ||
| L_ACC | ACC | ||
| L_TailSW | Tail Lamp Switch | ||
| L_AutolightSW | Autolight Switch | ||
| Internal | b_TailAutoState | Tail Lamp On/Off Request by Auto Light Control Module | |
| b_Escort | Escort activation/deactivation Status | ||
| CAN Communication | C_DRVDRSW | Driver Side Door Switch | |
| Internal | b_KeyInMarker | Key Inserted state Marker | |
| b_TailAutoCut | Auto Cut Status (Memorized in EEPROM) | ||
| b_TailLampSWOn | On: | ||
| L_TailSW = On || (b_TailAutoState = On & (b_IGN = On || b_START = On)) | |||
| Off: | |||
| L_TailSW = Off & (b_TailAutoState = Off || (b_TailAutoState = On & b_IGN = Off & b_START =Off)) | |||
| b_DDSWMarker | Driver door opened during escort state marker | ||
| Output | Internal | TailOn | On: C_EXTTailON==On & C_INTTailON==On |
| Off: C_EXTTailON==Off & C_INTTailON==Off | |||
| CAN Communication | C_EXTTailON | Tail Lamp On/Off command | |
| C_INTTailON | Interior Tail Lamp On/Off command | ||
