Clock Spring (Remote Control Switch) Connector End View (M01-R)

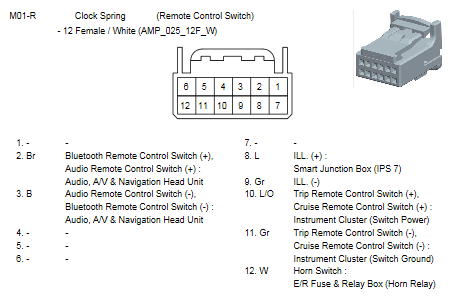

Fig 1: Clock Spring (Remote Control Switch) Connector End View (M01-R)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
