Clock Spring (Remote Control Switch) Connector End View (M01-R)

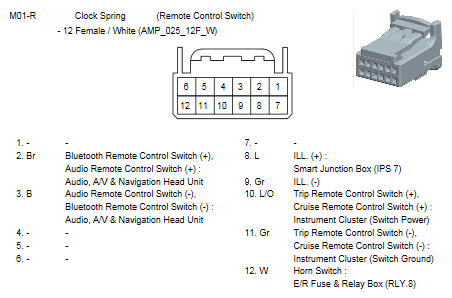

Fig 1: Clock Spring (Remote Control Switch) Connector End View (M01-R)
G10732302Courtesy of HYUNDAI MOTOR AMERICA
