Monitor DTC status

  1. Connect GDS and select "DTC Analysis" mode.
  2. Select "Diagnostic Trouble Codes (DTC)" button, Press "DTC Status" to check DTC"s information from the DTCs menu.
  3. Confirm that "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
  4. Read "DTC Status" parameter.

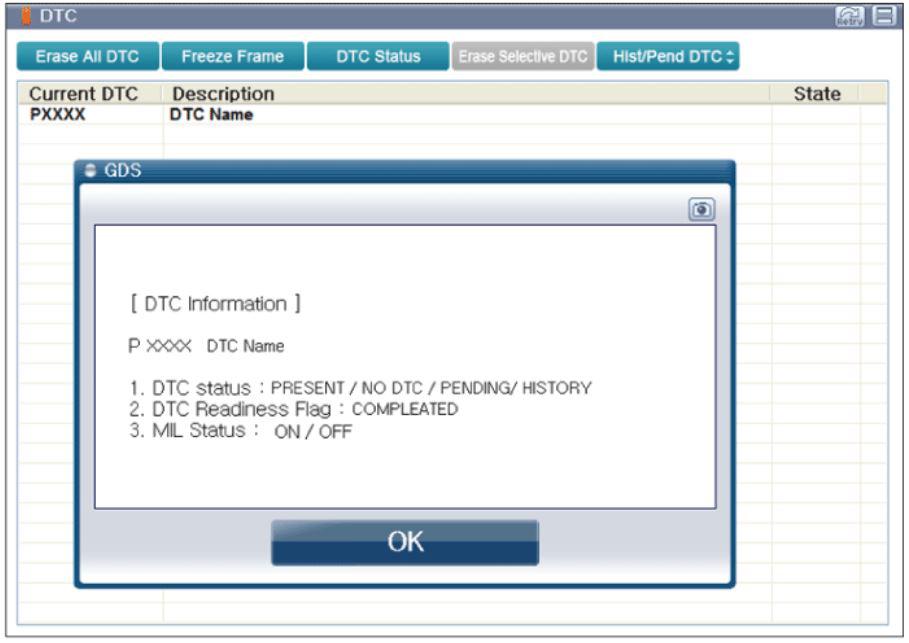

    5. Fig 1: Display - DTC Analysis
    G00540028Courtesy of HYUNDAI MOTOR AMERICA
  5. Record all DTC's, DTC status and freeze frame data. Does DTC Status indicate "Present"?
NOTE:
  • History (Not Present) fault : DTC occurred but has been cleared.
  • Present fault : DTC is occurring at present time.

    YES

    • Go to next step as below.

    NO

    • Fault is intermittent caused by PCM memory not having been cleared.
