Components And Components Location: Components: [M/T]

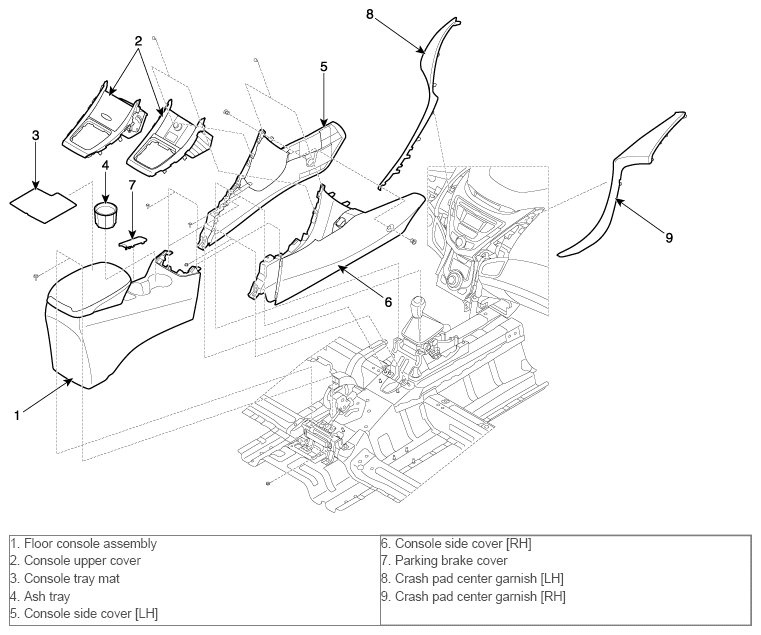

Fig 1: Console Component Locations (M/T)

G10534203

Courtesy of HYUNDAI MOTOR AMERICA
