Components And Components Location: Components

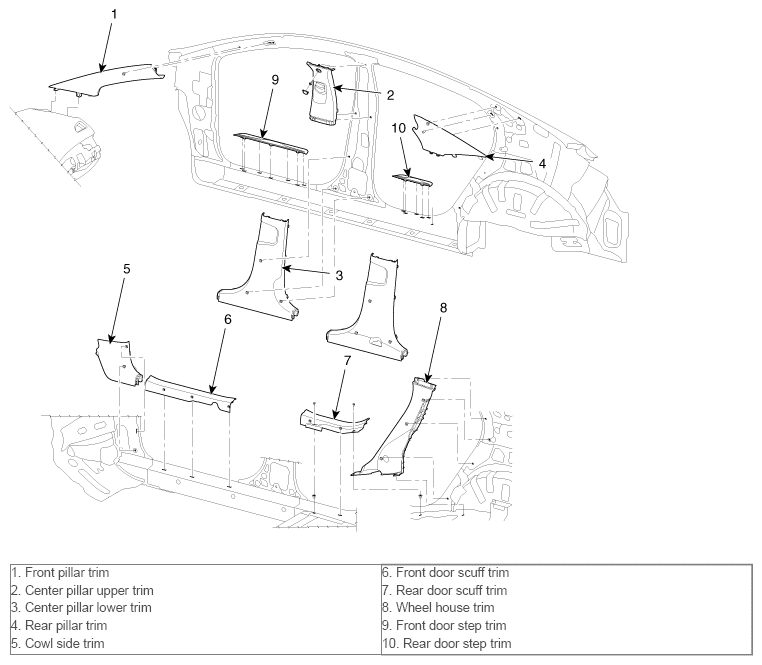

Fig 1: Interior Trim Component Locations

G10534292

Courtesy of HYUNDAI MOTOR AMERICA
