Components And Components Location: Components

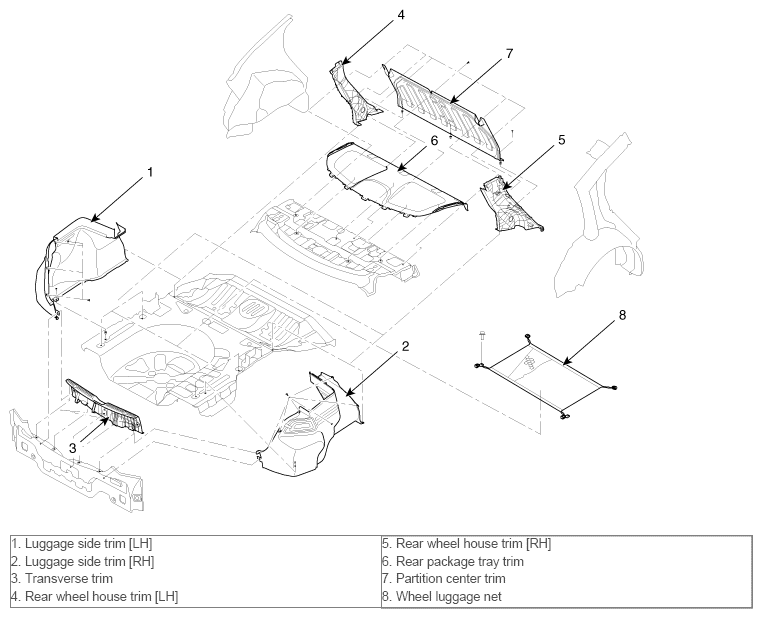

Fig 1: Trunk Trim Component Locations

G10534306

Courtesy of HYUNDAI MOTOR AMERICA
